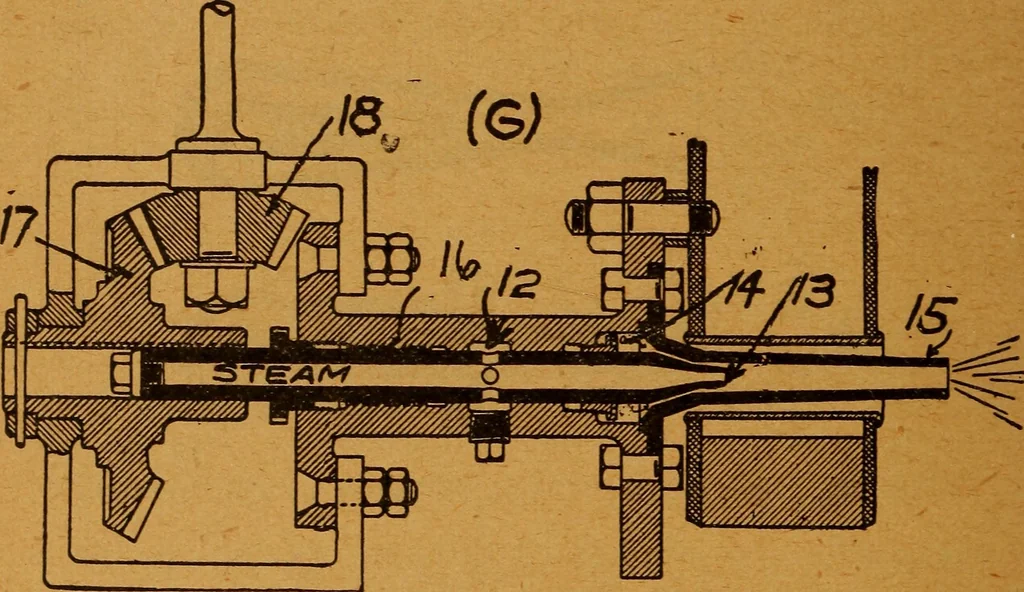

Fig. F. Mixed Pressure Burner, Using Both Steam and Low PressureAir. which draws the oil into the burner from the supply pipe. Onentering this vacuous space the oil comes into contact withthe jet and is blown out through the opening (2) in the formof a spray. This vacuum is high enough to lift the… … Fig. G. Burner Used by the Pennsylvania Railroad Under Locomotives. boiler or furnace equipped with this burner will lift the oildirectly to the furnace from the reservoir in the same way thata feed water injector will lift water into the boiler. With thecommercial injector, the position of the…
