Locomotive engine running and management : a treatise on locomotive engines, showing their performance in running different kinds of trains with economy and dispatch; also directions regarding the care, management, and repairs of locomotives and all their connections (1888)
Sinclair, Angus, 1841-1919 · New York : J. Wiley · leaf 346

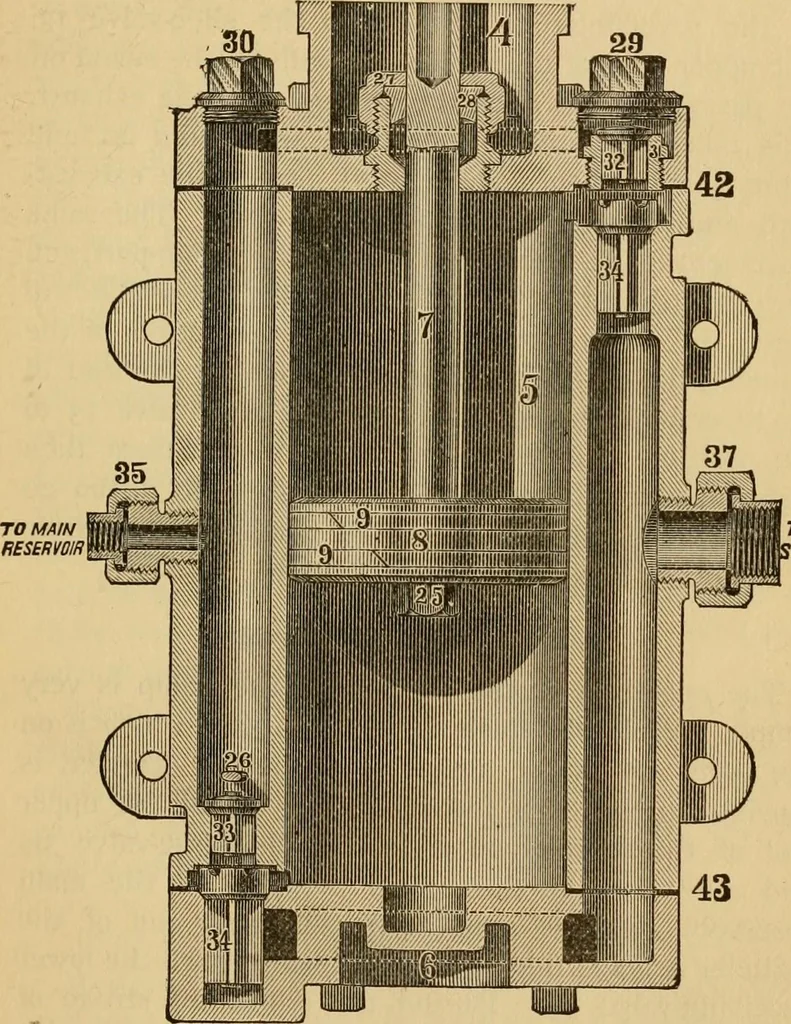

EXHAUST i it,- Z:^ a. THE WESTINGHOUSE AIR-BRAKE. 321 … TO Am TRtrn^ Fig. 33 b. below it is closed by the valve-piston in the same waythat the exhaust port is closed at the other end. Whenthe main piston 7 shall reach near the top of its up-ward stroke, the plate 10 will strike on the projection 322 LOCOMOTIVE ENGINE RUNNING. on the rcversing-rod,…
Locomotives
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
