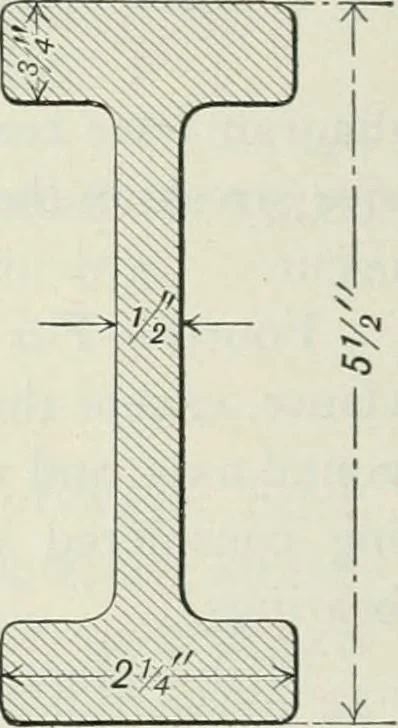

e turned into tire low-pressure cyl-inder when starting, the high-pressure pis-ton being almost balanced on each side.Thus we can take P^425 X i8o^8o,oo3pounds, that is, the area of the low-pres-sure cylinder by 90 per cent of the boilerpressure. In the table of I-sections, 5^^inches high, as our… … Fig. 50, •53 A 80,000 = 15,000 pounds per square inch as the unit load. As 5-37the rod was of steel, we use plate 20a, marked Steel Rod—•Horizontally in order to find the maximum stress due to hori-zontal deflection, as in case 3. Now, as 226 is slightly morethan half way between 200 and 240 (for…
