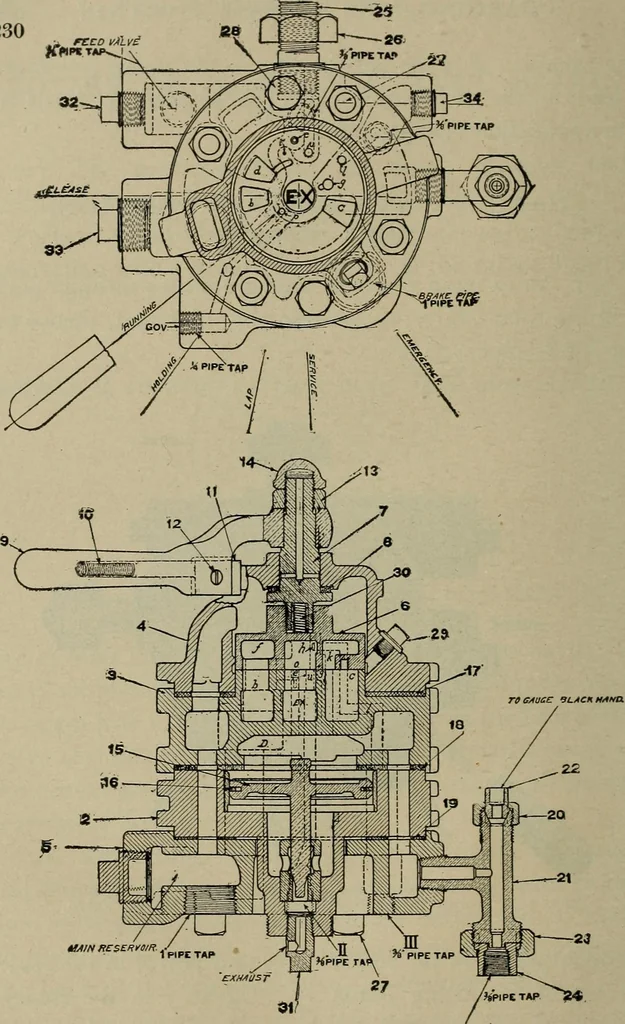

Fig. -Rotarv Valve Seat H-6 Automatic Brake Valve. through port j, in the rotary valve and port g in the seat,on top of equalizing piston 15. Cavity / in the rotaryvalve now connects port d with warning port r in the seat, 230 … UAIN RESERVOIR. CtaitJZiHa reservoir, YlG, 73 _H-6 Automatic Brake Valve, Sectional View. No. 2. RUNNING POSITION H-6 TYPE 231 allowing a small amount of air to escape into the exhaustcavity ex, causing a warning sound to notify the engineerthat the brake valve handle is in release position. 620.…
