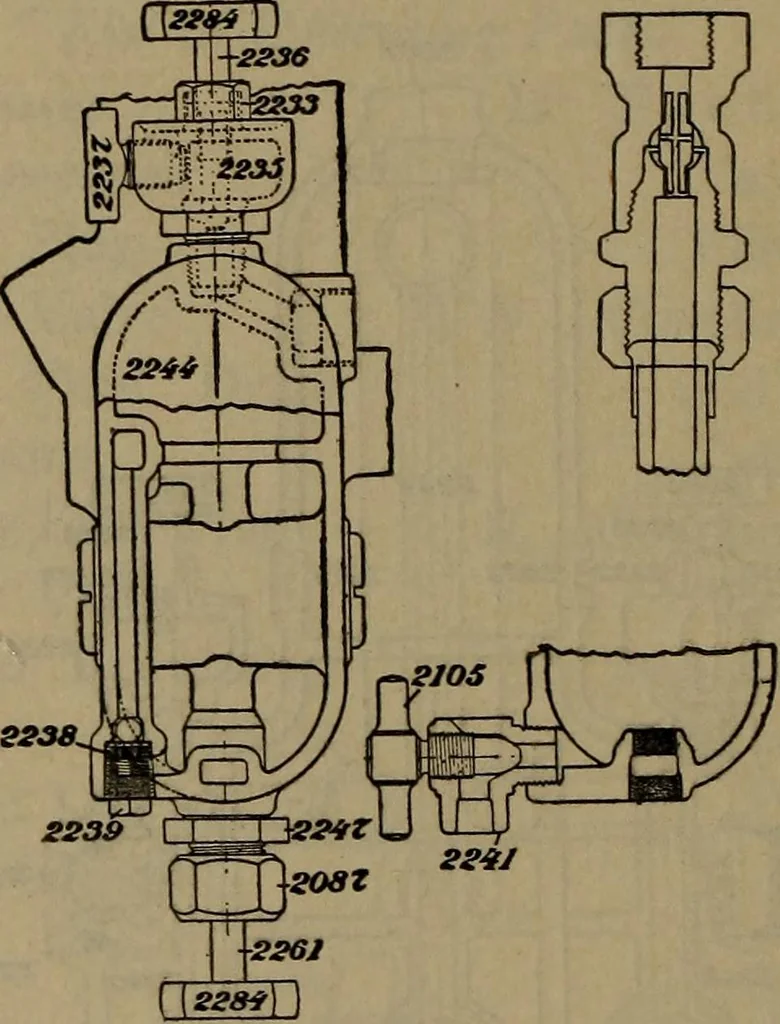

f condenser F should be opened and allowedto remain open while the lubricator is in operation. 140 LOCOMOTIVE LUBRICATORS. Sufficient time should be allowed for the condenserand sight feed glasses to fill with water. Water-valve Dshould be opened immediately after the steam valve isopened. The flow… … PLATE 39. opened and the cup of the oiler filled. Valve X should beclosed after filling and valve H opened. When refilling the lubricator, valves EE and L shouldalways be closed before closing water-valve D. Drainplug G should be opened, and filling plug O removed. The lubricator should be blown…
