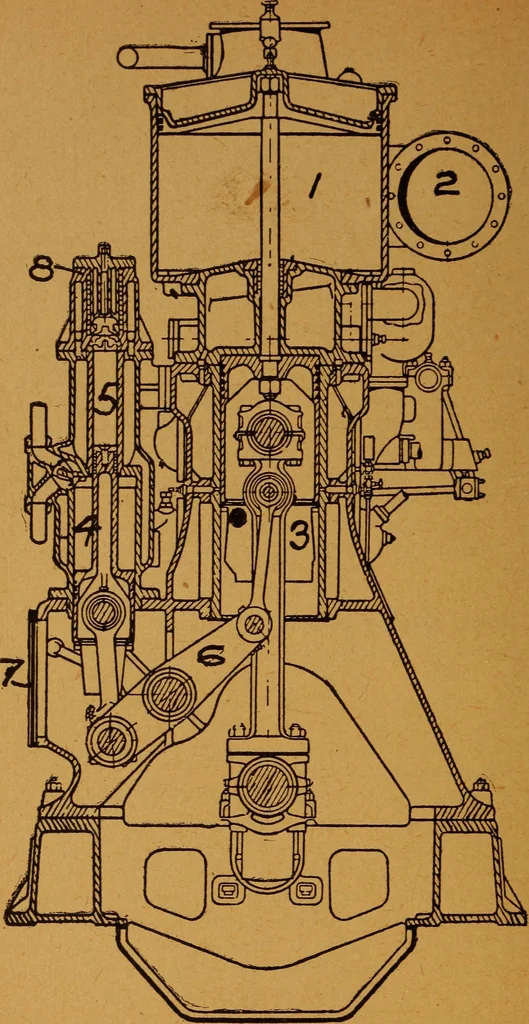

ge ignition compressor cylinder. Thebore of the working cylinders is 18.8 inches, and the stroke 27inches. While the crank case is of the enclosed type, thereare two sets of covers which can be easily removed for in-spection while the engine is running, for as the scavengingpump performs the work… … Fig. 68. Cross-Section Through the Air Cylinders of the Two StrokeDiesel Motors on the M. S. Monte Penado. GAS, OIL AND STEAM ENGINES 169 and is driven from the crank-shaft, the cross-head of the pumpforming one piece with the piston of the low pressure cylinderof the injection air cylinder. All of…
