Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 169

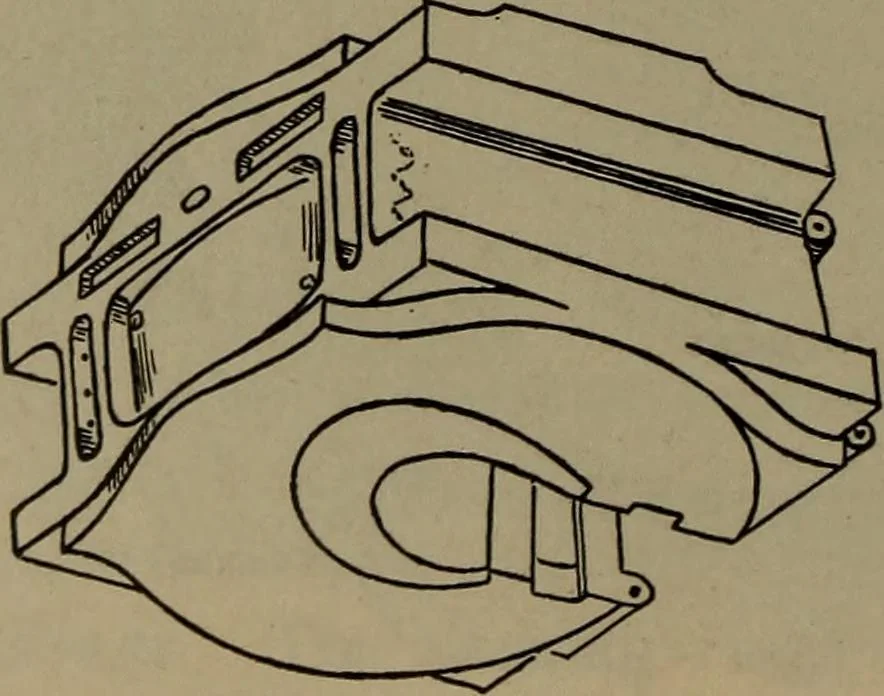

hence the packingremains steam-tight until the segments have closed up en-tirely, due to wear. After this has occurred, the packingrings should be renewed. LUBRICATION. Oiling the Engine. The lubricator and the rod cupsshould first be filled, after which, if possible, the engineshould be placed in… … PLATE 46. tity of oil should be put in the oil pocket which leads tothe wedge, and a sufficient amount should be put in thecenter pocket. Care should be exercised in putting the LUBRICATION. 159 oil intended for lubricating the journal well over towardthe inside of the driving box, as the cinders…
Locomotives
