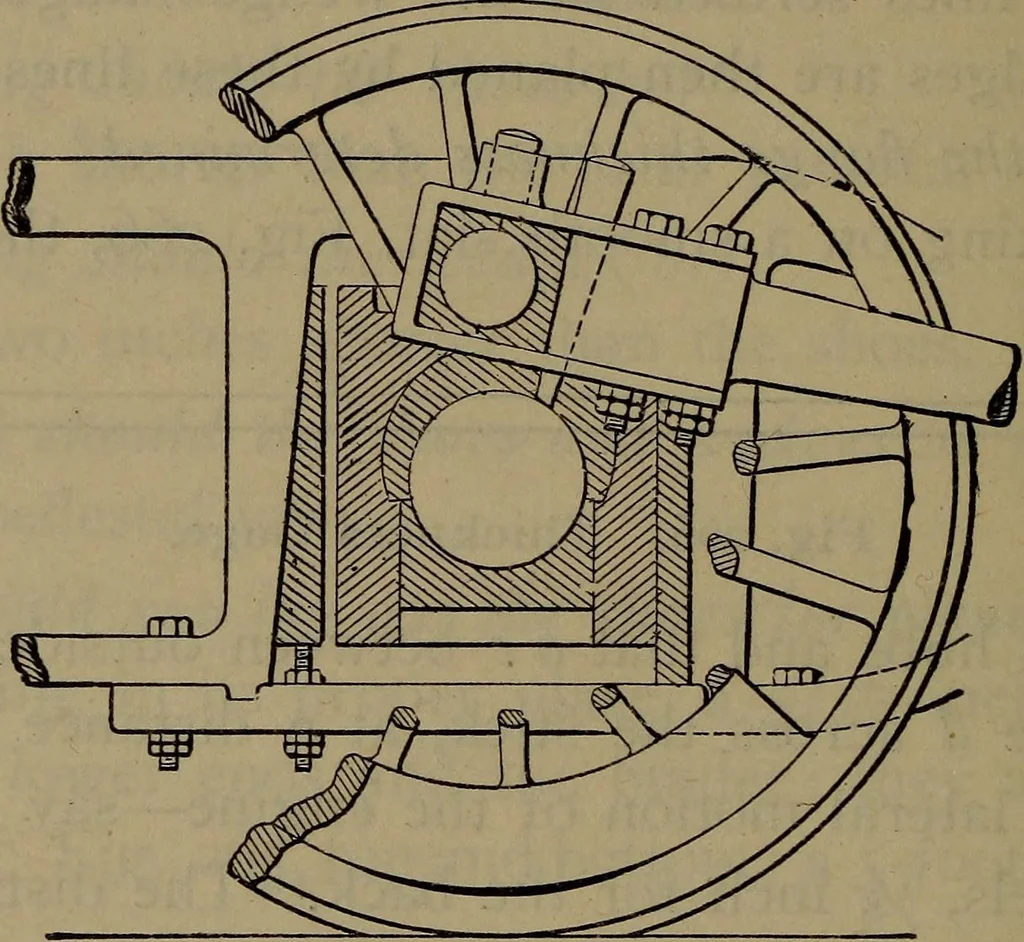

short steel bar. Run the nuts on top of binders 396 LOCOMOTIVE CATECHISM. down with the fingers, then tighten the nuts under binder, andthe side is finished. Place the crank pins of the opposite sideon back center, and proceed in the same way. (2) With theengine near the top quarter on the right… … Fig. 267. Crank Pin and Driving Axle. and leave a space between the back of the box and the jaw.Then with the engine a quarter of a turn ahead, the sameoperation as the left side. Q. How tight should main wedges be set? A. Tight enough to prevent pounding of the box, but looseenough to let oil…
