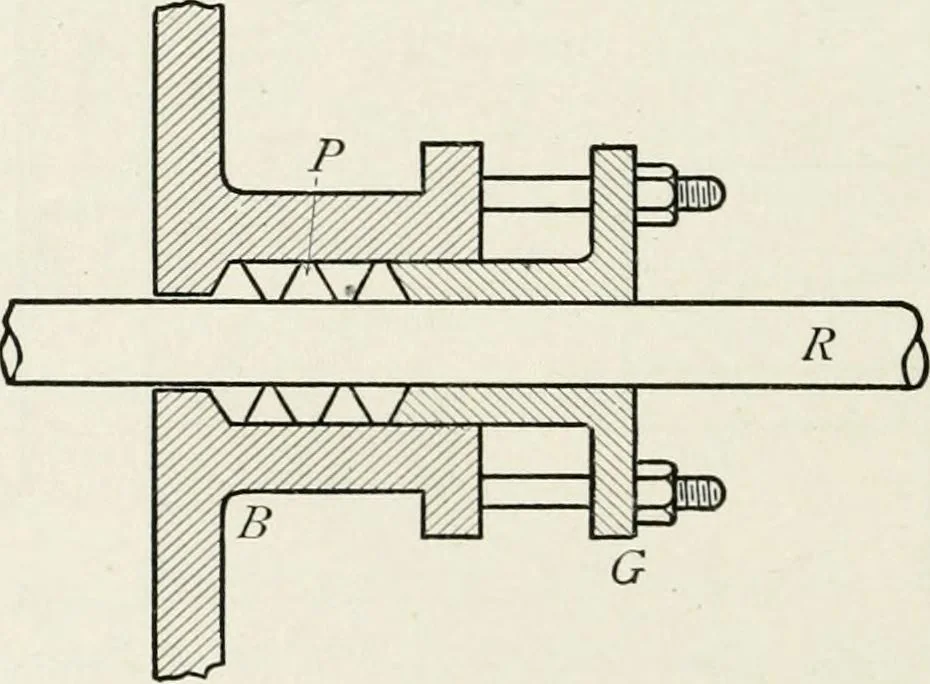

55. Stuffing Boxes.—In steam engines and pumps the glandsfor holding the steam and water packing are the sliding bearings … Fig. 49. which cause the greatest friction and the most trouble. Fig. 49shows the general arrangement. B is the stuffing box attachedto the cylinder head; R is the piston rod; G the gland adjusted by STUFFING BOX 125 nuts on tlie studs shown; P the packing contained in a recess inthe box and…
