Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 282

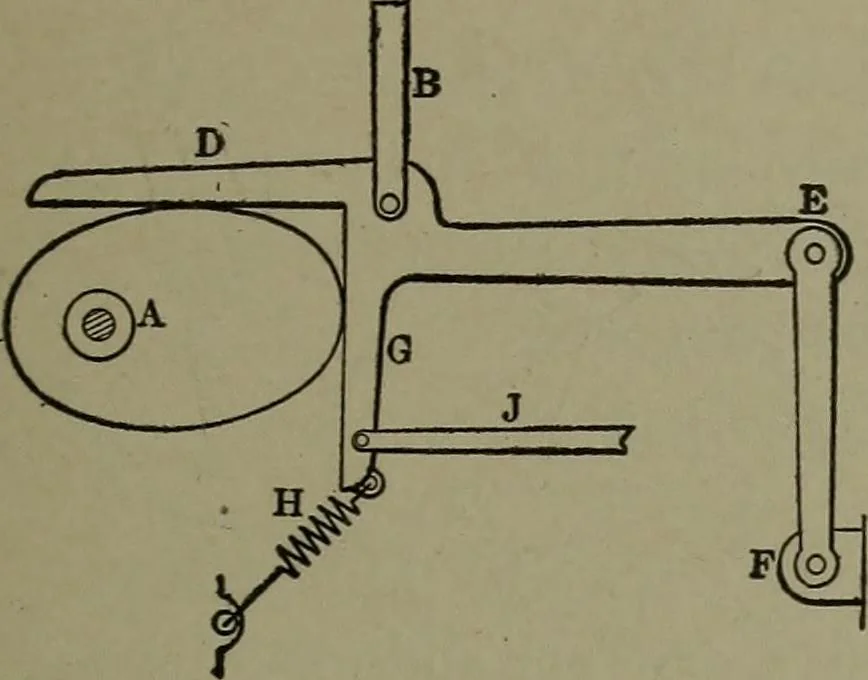

1105. DOUBLE-CAM MOTION,from a sliding follower. The arm Eof the follower, slides freely in thebox, clamped to the vertical shaft,giving two equal motions at rightangles. MOTION AND DEVICES CONTROLLING MOTION. 273 … 1106. PIVOTED FOLLOWER.—The square-armed follower, pivoted atE and F, is kept in contact with thecam by the spring H, and so producedissimilar motions in the connectingrods B, J.
Mechanical movements
