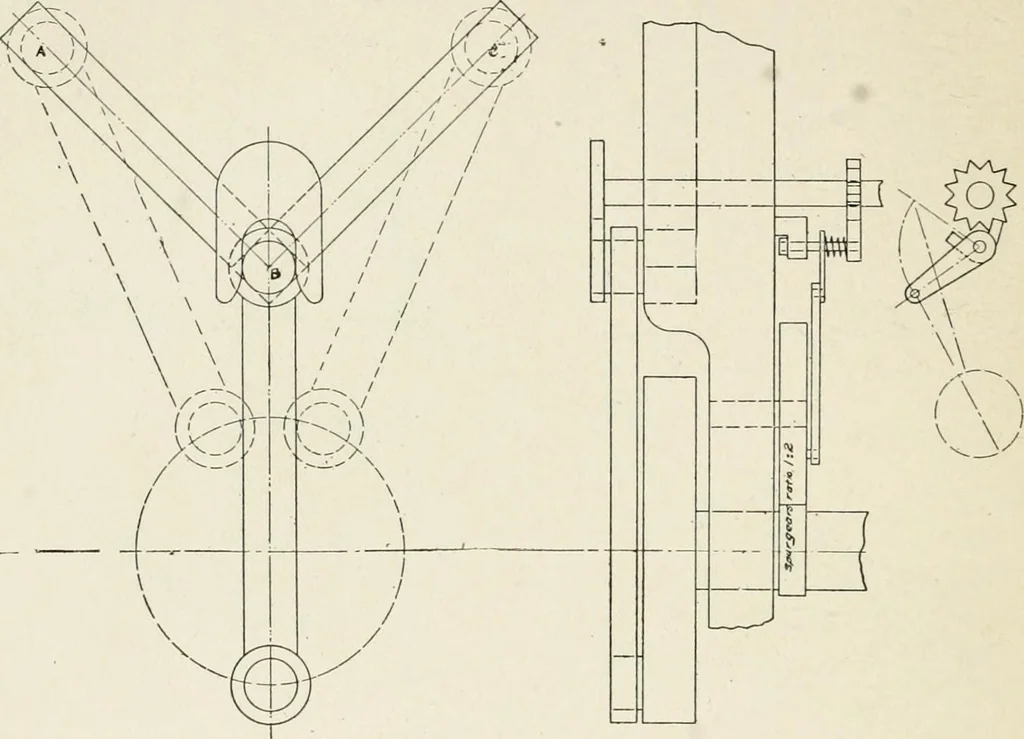

cam curve as shown. Length of horizontal connecting rod in. Length of vertical connecting rod in. Travel of horizontal crosshead in. Travel of vertical crosshead in. Crossheads to move out in. with uniform acceleration; out in. with uniform motion; out in. with uniform acceleration; and to move in… … Fig. 186. 183. Assignment.—Having given the path of a groove ABC,a follower block is to move from A to 5 to C to 5 to A. Designa mechanism without the use of cams, and without allowing anypart of the driving mechanism to extend within the angle ABC.Rack and pinion, or chain drives cannot be used…
