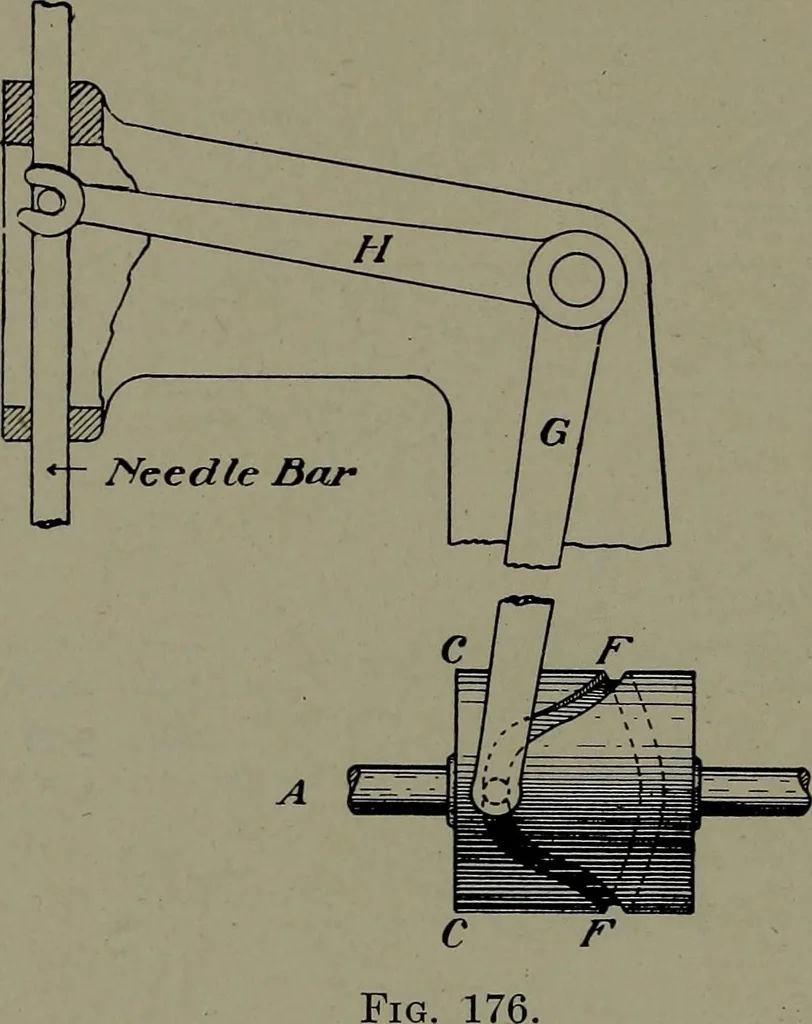

during first half of its motion and constantly retardedduring latter half. During the first half of the motion of E (or F), one shifter armmoves outward, while the other arm remains stationary (in theoutward position). During the second half of the motion of E,the second shifter arm moves inward,… … Cam of Home Sewing Maghine173. Assignment.— Diameter of cylinder (11-3^) in. Depth of groove (xe-i) in. Diameter of roller (re-f) in. Stroke of bar (1-3) in. Length of arm G (6-10) in. Length of arm H (10-18) in. Design a cylindrical cam similar to that shown in the sketchto engage a rocker arm.…
Machine design
