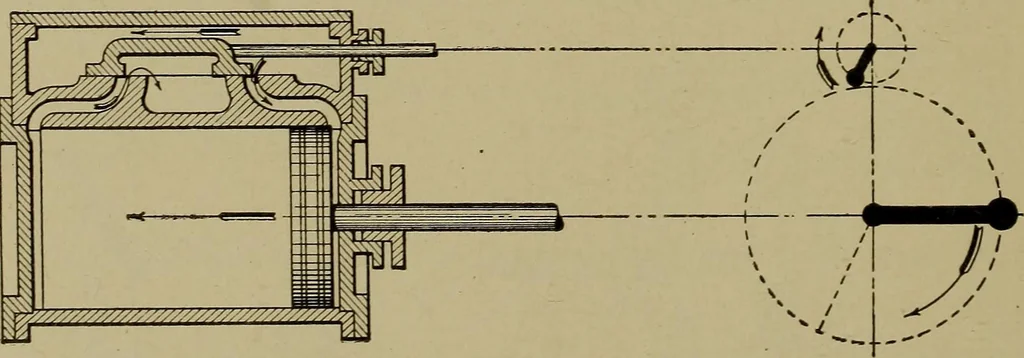

side lap, theexhaust continues longer than the admission. Fig. 9 shows the relative positions of crank, eccentric, andvalve when the exhaust closes on the crank end and compressionbegins. Between these two positions, the steam is expanding inthe head end and exhausting from the crank end. Between… … Fig. 11. Position of Valve and Cylinder for Crank-End Admission release. Fig. 11 shows admission at the crank end of the cylinderand marks the end of crank-end compression. Effect of Change of Lap. By referring to Figs. 6 to 11, the effectof any change of lap may at once be observed. If the outside…
