Benjamin, Charles Henry, 1856- [from old catalog], Hoffman, James David, 1868- [from old catalog] joint author · New York, H. Holt and company · leaf 367

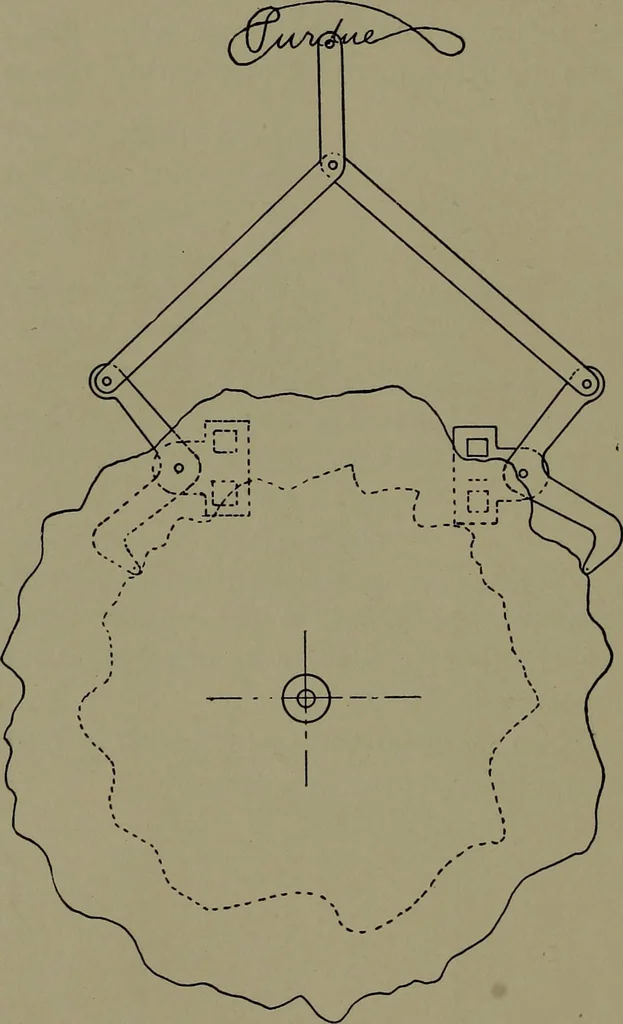

Fig. 198. Following along the line of the above assignment, others maybe made referring to a base runner around the base-ball diamond 332 MACHINE DESIGN using various forward and backward movements, and variousconstant velocities and accelerations. 200. Assignment.—Required to design the mechanism… … FiG. 199. sality of the cam motion. All dimensions are to be selected bythe student. Care should be exercised that the cam curves donot slope at too great an angle. 201. Assignment.—Required to design the mechanism andcams to produce some word at the end of the pencil arm. The KINEMATIC POBLEMS 333…
Machine design
