Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 378

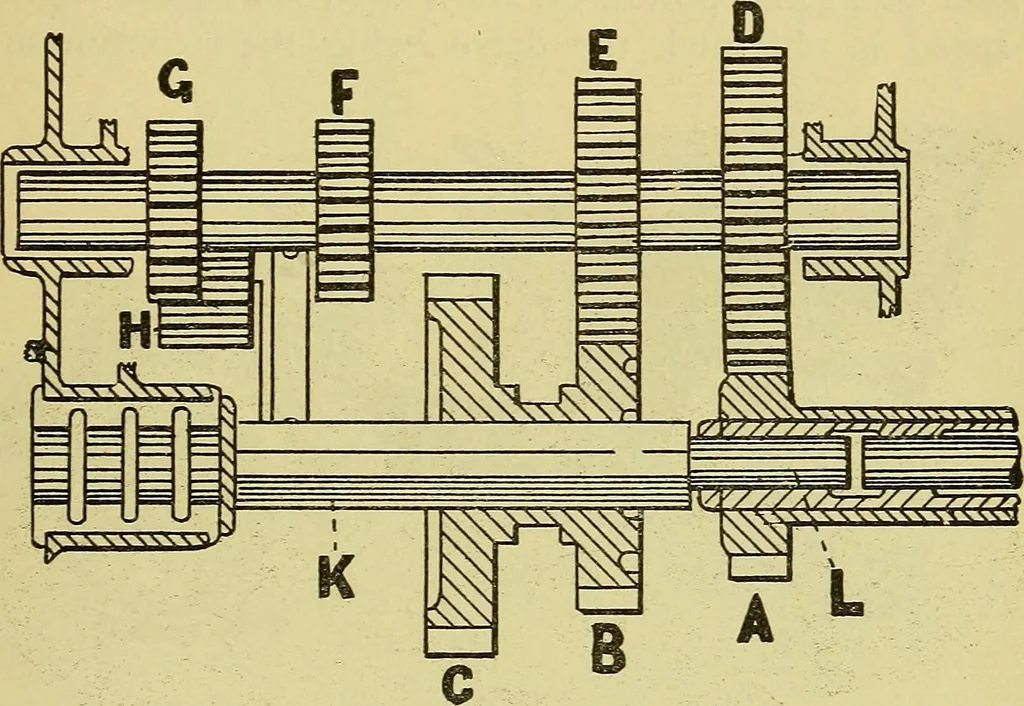

S. 365 breaker cuts the dynamo into the circuit; from this speed up-ward, the output of the dynamo remains practically constant, bymeans of the special winding employed. There is consequentlyno particular precaution to be observed, no switch or circuitchanger or commutator to handle, and no danger… … Fig. 277.—Diagram of the Decauville Transmission Gear. A is the spurpinion at the end of the clutch shaft; B and C, spurs on the slidingsleeve; D, E, F, G, spurs keyed to the second motion shaft; H, the re-verse pinion, constantly in mesh with G, and giving the reverse, whenin mesh with C also; K,…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
