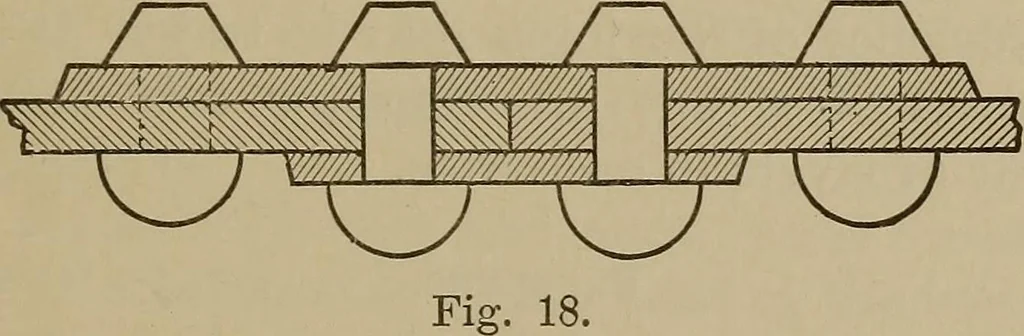

ordinary double riveted butt joints. The internalpressure is to be 175 lbs. gauge and the material is to be steelof 60,000 lbs. tensile strength. Determine thickness of shelland proportions of joints. Net factor of safety to be 5, as inProb. 4. 6. Design a diamond riveted joint such as shown in Fig… … 7. The single lap joint with cover plate, as shown in Fig. 19,is to have pitch of outer rivets double that of inner row. De- 68 MACHINE DESIGN. termine diameter and pitch of rivets for | inch plate and theefficiency of joint. ■- \w//A w \_7
