Benjamin, Charles H[enry], 1856- [from old catalog] · Cleveland, C. H. Holmes · leaf 56

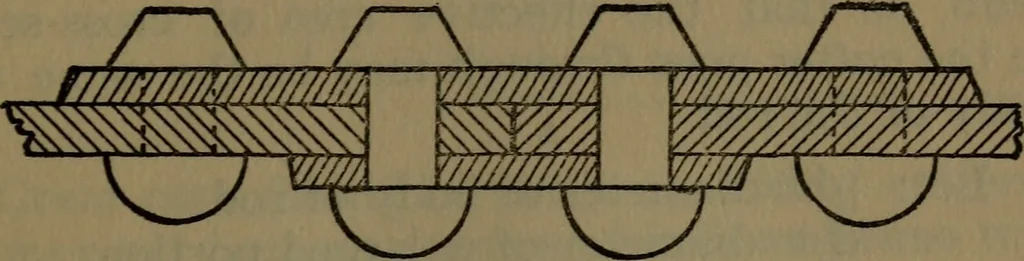

s and the ring seams ordinary double rivetedbutt joints. The internal pressure is to be 175 lbs.gauge and the material is to be steel of 60,000 lbs. MACHINE DESIGN. 49 tensile strength. Determine thickness of shell andproportions of joints. Net factor of safety to be fiveallowing for efiiciency of… … Fig. 11 a. 7. The single lap joint with cover plate, as shownin Fig. 12, is to have pitch of outer rivets double thatof inner row. Determine diameter and pitch of rivetsfor fi inch plate and the efficiency of joint. \_7 ^ Fig. 12 14. Joint Pins. A joint pin is a bolt exposed todouble shear. If the…
Machine design
