Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 125

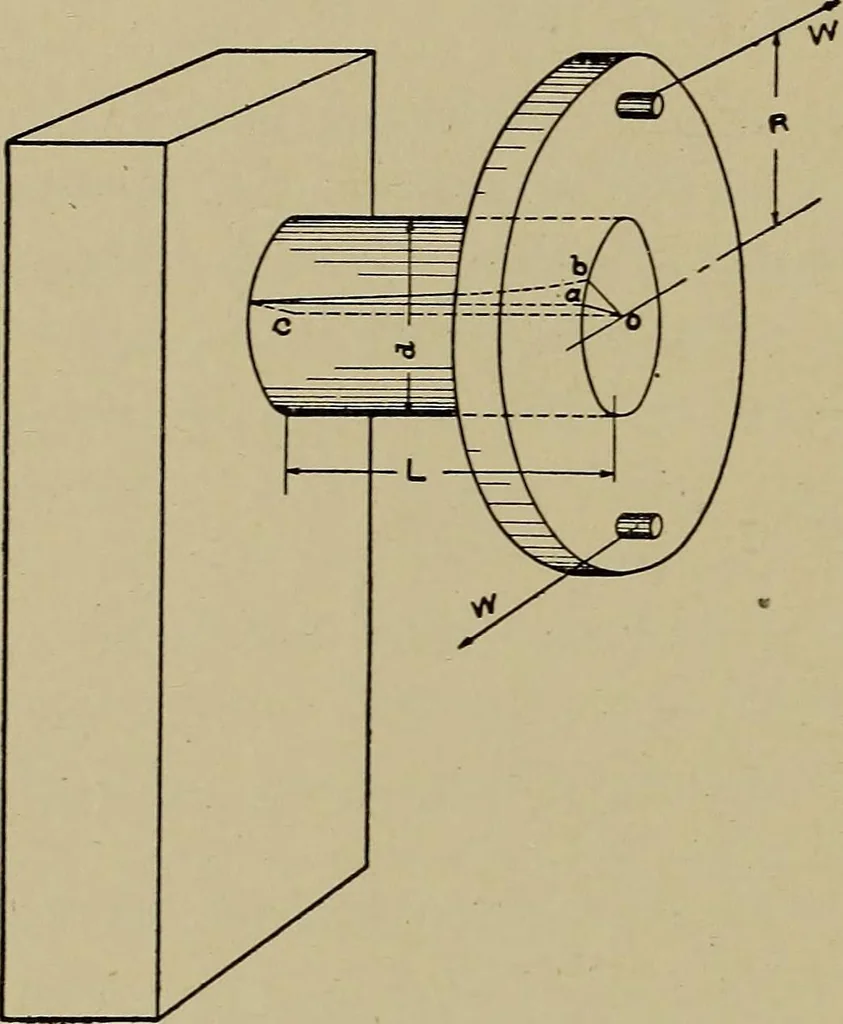

ng of the pin or stud itself.The same condition would be realized if the disk in Fig. 65 wereloose upon the shaft. In that case, the bending moment would becaused by TQ + T0 acting with the leverage L. Of course therewould have to be some resistance for Ta — T0 to work against, inorder that torsion… … Fig. 64. Fixed Shaft with Disk MACHINE DESIGN 113 If the distance L becomes very great, both the angular deflec-tion due to twisting, and the sidewise deflection due to bending,become excessive, and not permissible in good design. This troubleis remedied by placing a bearing at some point closer to…
Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
