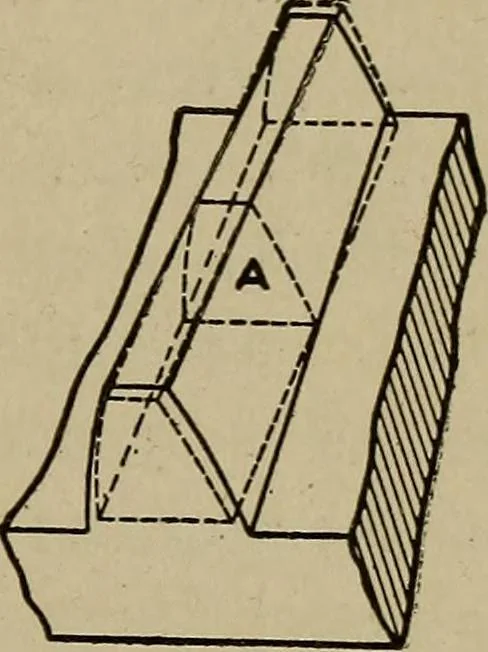

arms must, as in the case of spur gears, transmit the loadfrom the tooth to the shaft; in addition, the arms of a bevel gearare subjected to a side thrust due to the wedging action of the cones.Hence, sidewise stiffness of the arms is more essential in this type ofgear than in the case of the spur… … MACHINE DESIGN 139 ferent from a true rectangle. Hence, the error will be but slightif the average cross-section of the tooth be taken to represent itsstrength, and the calculation made accordingly. Fig. 82 shows a bevel-gear tooth with the average cross-sectionin dotted lines. For the purpose of…
