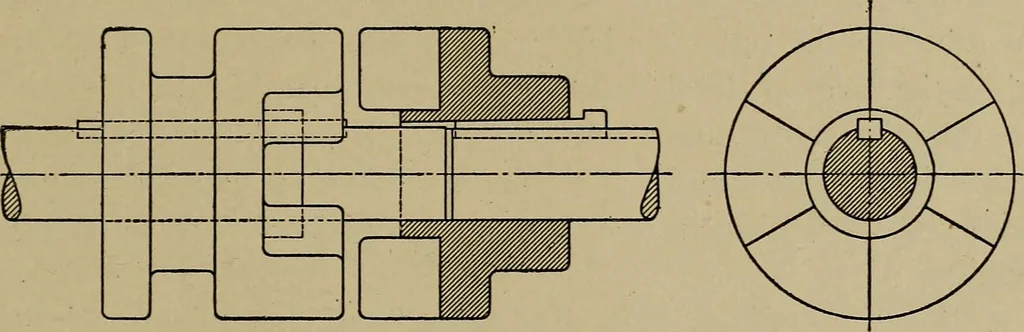

, and requires an extra space of half its length onthe shaft over which to be slipped back. MACHINE DESIGN 75 Where the flange coupling, Fig. 42, would be unnecessarilyexpensive, the clamp coupling, Fig. 43, which is simply a muff coup-ling split in halves and recessed for bolts, is a good coupling… … Fig. 44. Claw Coupling tightly and make a rigid connection. It is desirable to have the bolt-heads protected as much as possible, and this may be accomplishedby making the outside diameter large enough so that the bolts willnot project. Often an additional shell is provided to encase thecoupling…
