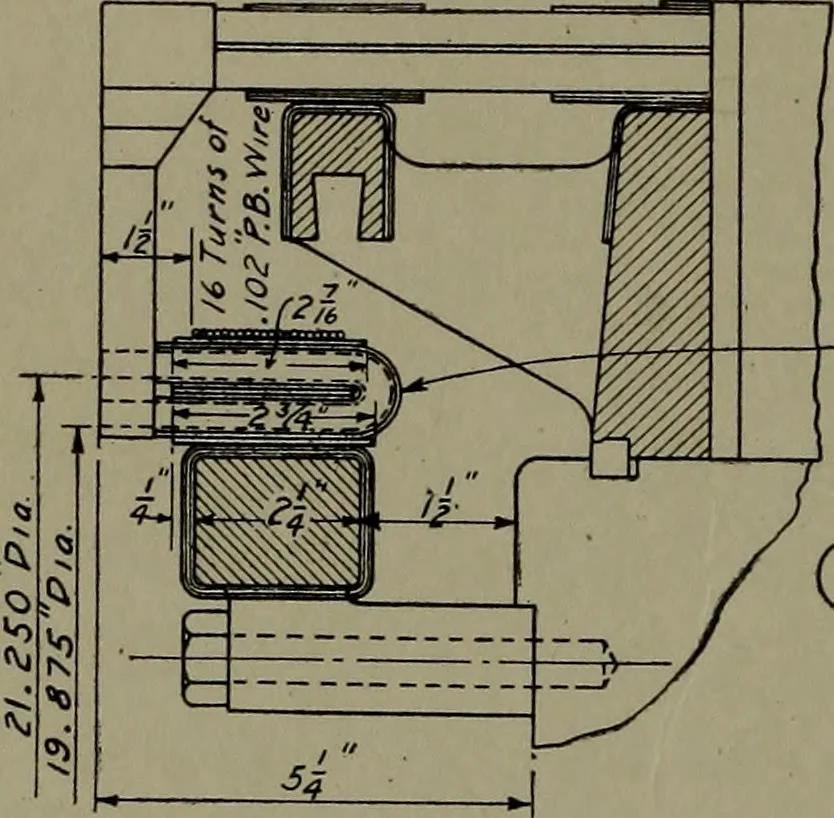

An illustration from Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator, 1920, leaf 247 — owing the exact formand all dimensions, Fig. 1. A note giving insulation data is added,the thickness being given as usual in mils or thousandths of an inch. Assembly Drawing. From the above an assembly is devel-oped, Fig. 6, showing the rings in place under the armature coilsand supported by a ring… … ■Insulate with 2 lauers of varnished cambriccovered with brolinen drill. ©
