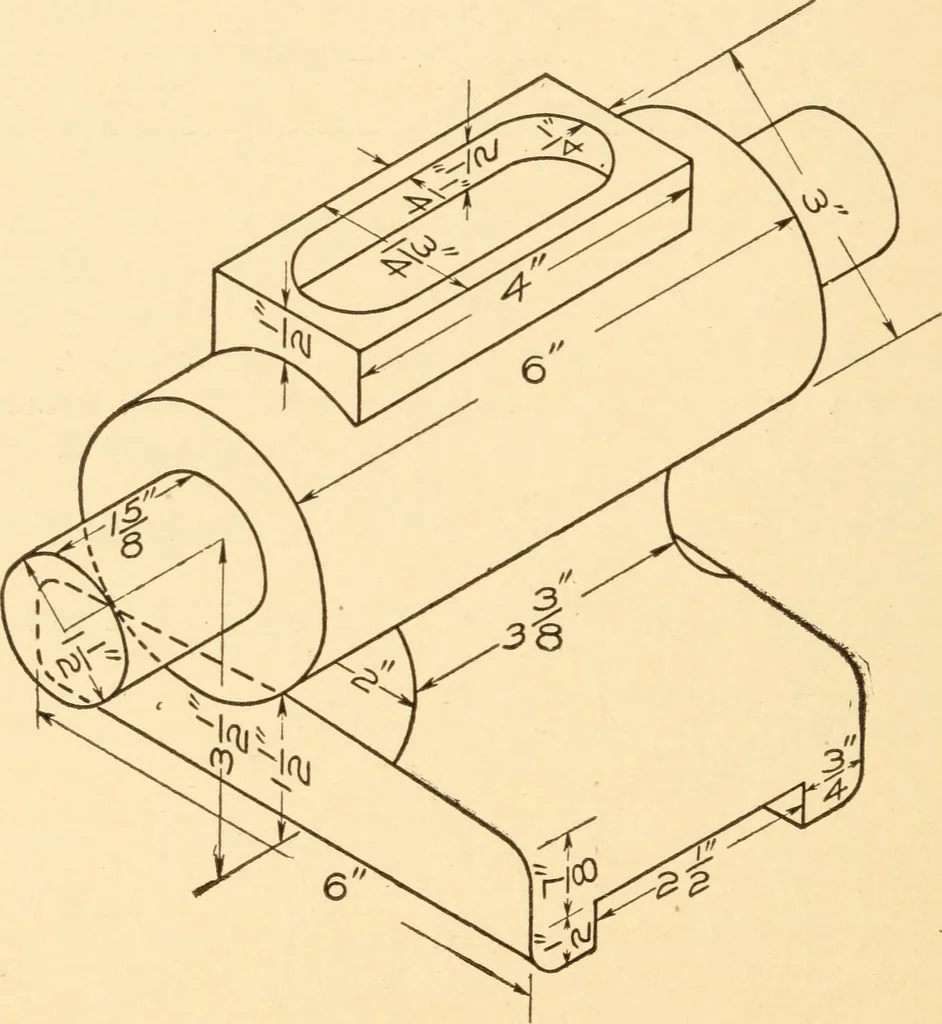

Fig. 143 140 A PRACTICAL COURSE IN pattern but not for the box just referred to. Makethree views from the illustration, full size. Problem is.—Fig. 144 is an illustration of a pat-tern for a pedestal bearing. Make three views, g I-O. y … Fig. 144 Problem 14.—Fig. 145 is an assembly drawing ofa simple machine vise. Make a detail drawing fillingall blank dimensions as indicated in Figs. 146 and 147.Those dimensions which are apparently omitted should MECHANICAL DRAWING Ul
