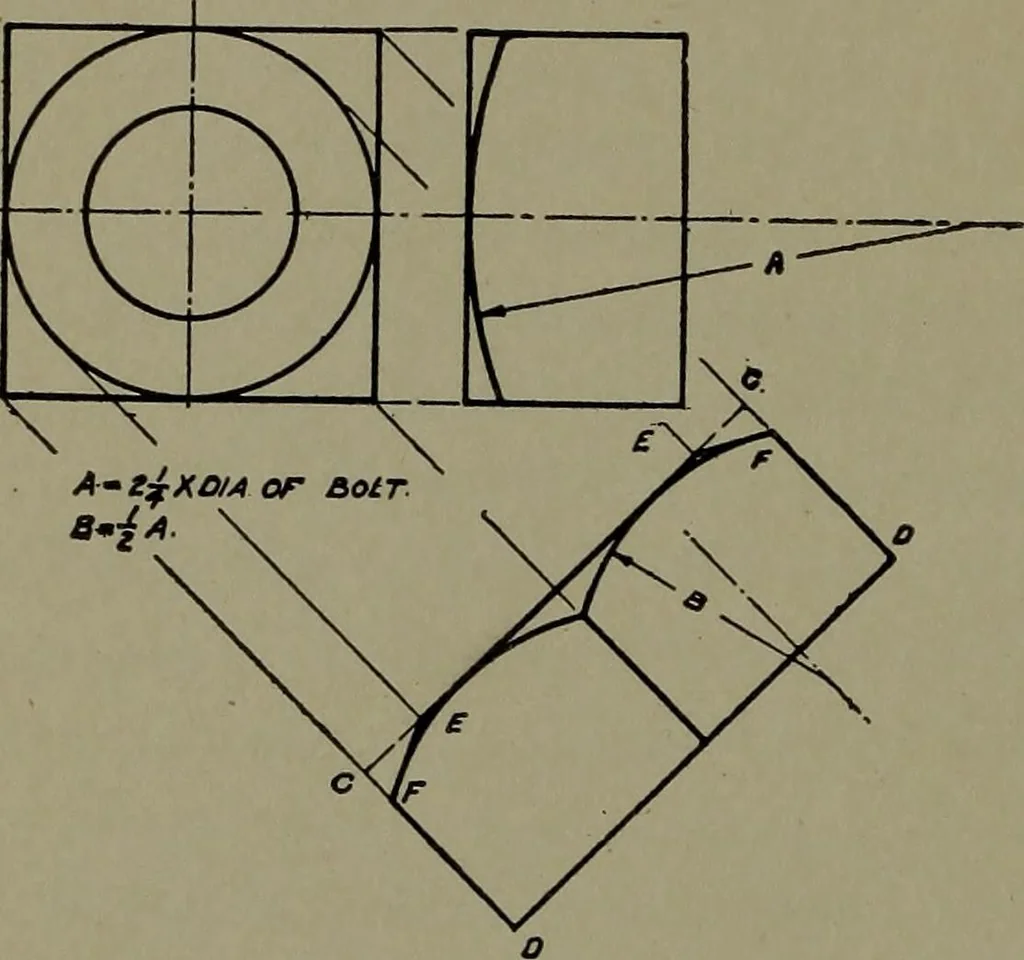

shows three viewsof a square head or nutwith chamfer correspondingto that on the hexagonalhead in Fig. 23; and Fig. 28shows the square head ornut chamfered to correspondto Fig. 26. Referring firstto Fig. 27, the arc on theside view which shows theshort diameter of the nut is drawn with a radius A,… … Fig. 27. Three Views of Square Head or Nutwith Chamfer
