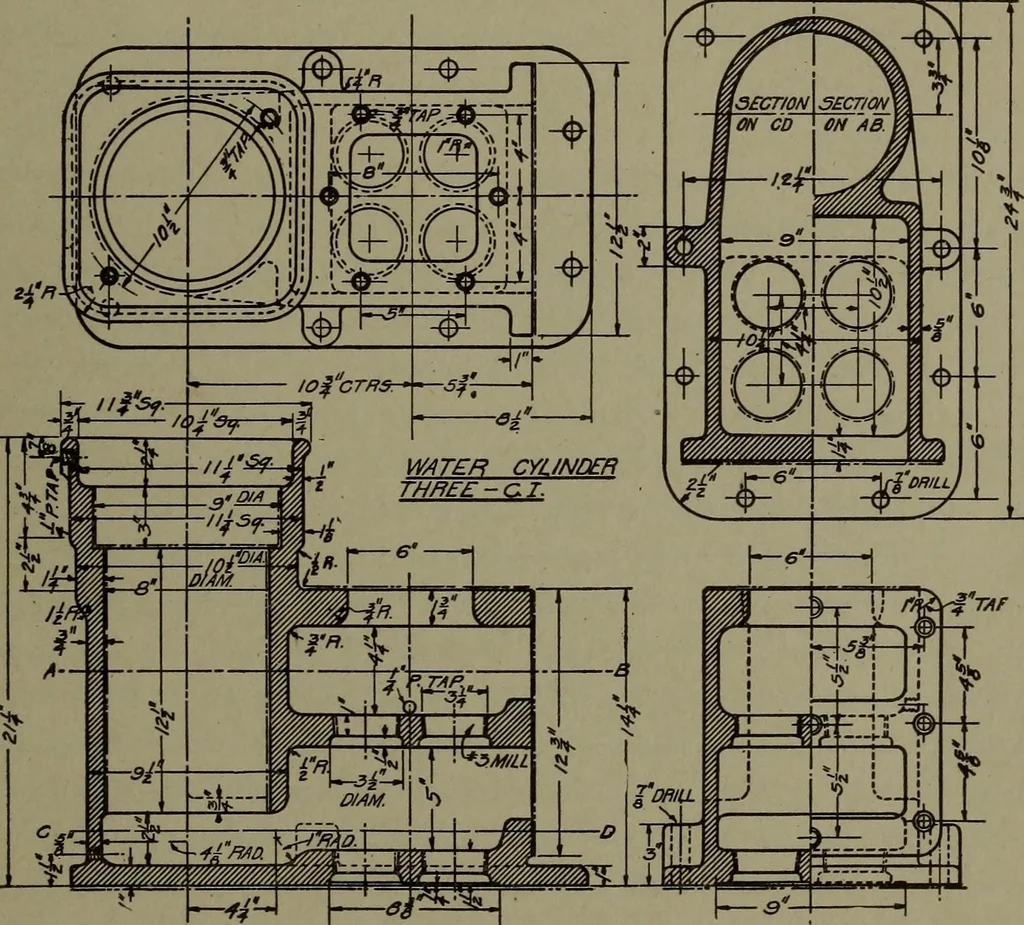

rcleentirely with black ink; the method illustrated, however, is themost common. MACHINE DRAWING 53 Water Cylinder for Triplex Pump. Fig. 45 shows a watercylinder for a triplex pump, and is an excellent illustration of manyof the points heretofore brought out, combined on a single drawing.This… … ■*£—i 4^^\ Fig. 45. Detail of Water Cylinder for Triplex Pump cross-sectional views the dotted lines have been almost entirelyeliminated, thereby leaving the section work clear and plain. Thereis no necessity of showing parts in dotted lines which are beyondthe plane of the section, but in several…
