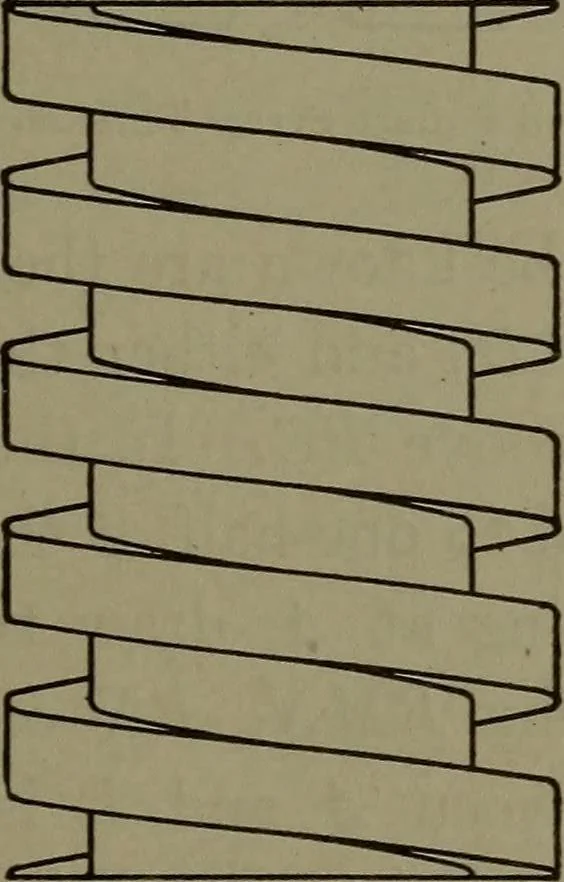

Fig. 63. Accurate Construction for Double V Thread cylinder KL, the diameter of which is equal to the diameter AOminus twice the depth of the thread. Now, on this smaller cylinder,starting at point H, perpendicularly under a point on the line ACwhich is half way from A to C, draw the helix LHJ with…
