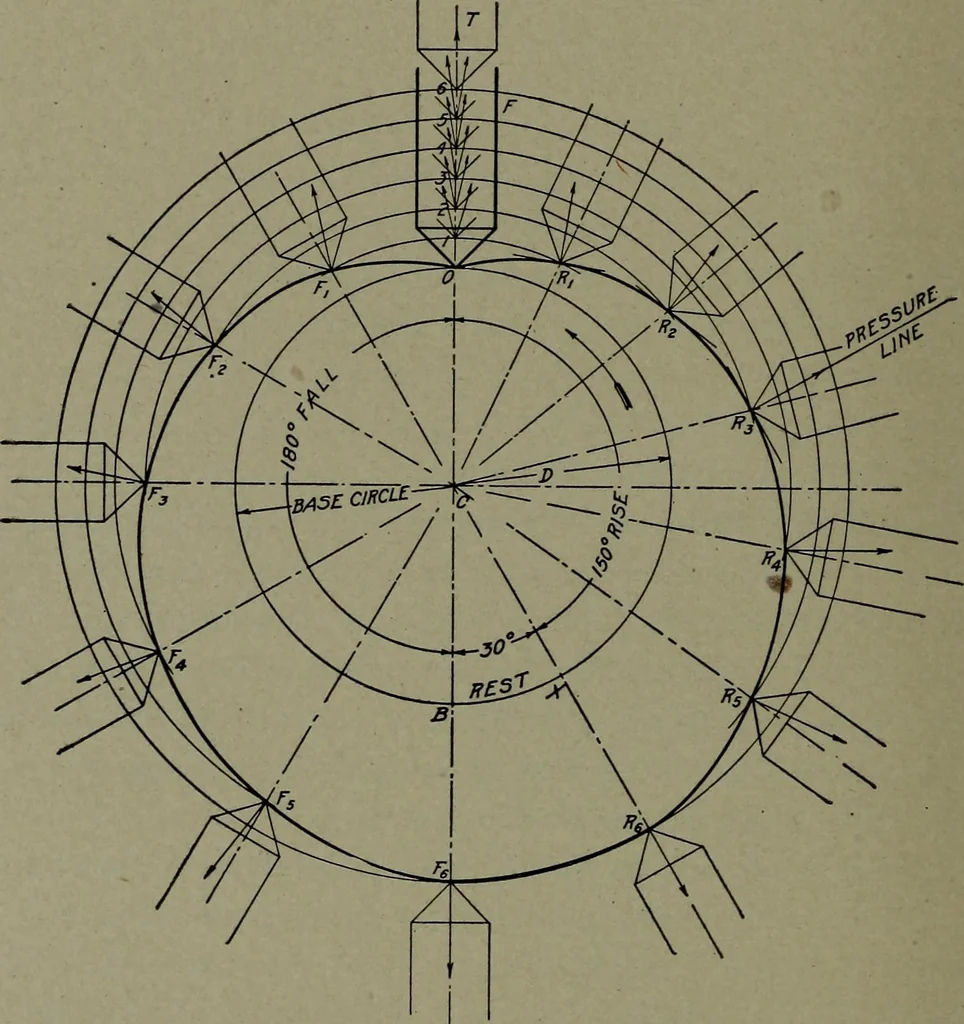

the follower at Rv Similarly, points R2, R3, Rv i?5, 86 MACHINE DRAWING and i?6 are found. As the follower rests from X to B, the arc ofintersection for jR6 is continued to F6. For the period of fall, arcsare swung from the same points of follower travel as before, makingthe intersections Fh, Fv… … Fig. 79. Diagram for Cam with Pointed Follower Whose Path Intersects Cam Center a tangent line to the face of the follower. A pointed follower, asshown in the figure, is not a very practical form, as the point issubjected to severe wear. It is chosen for the present illustration,to afford the…
