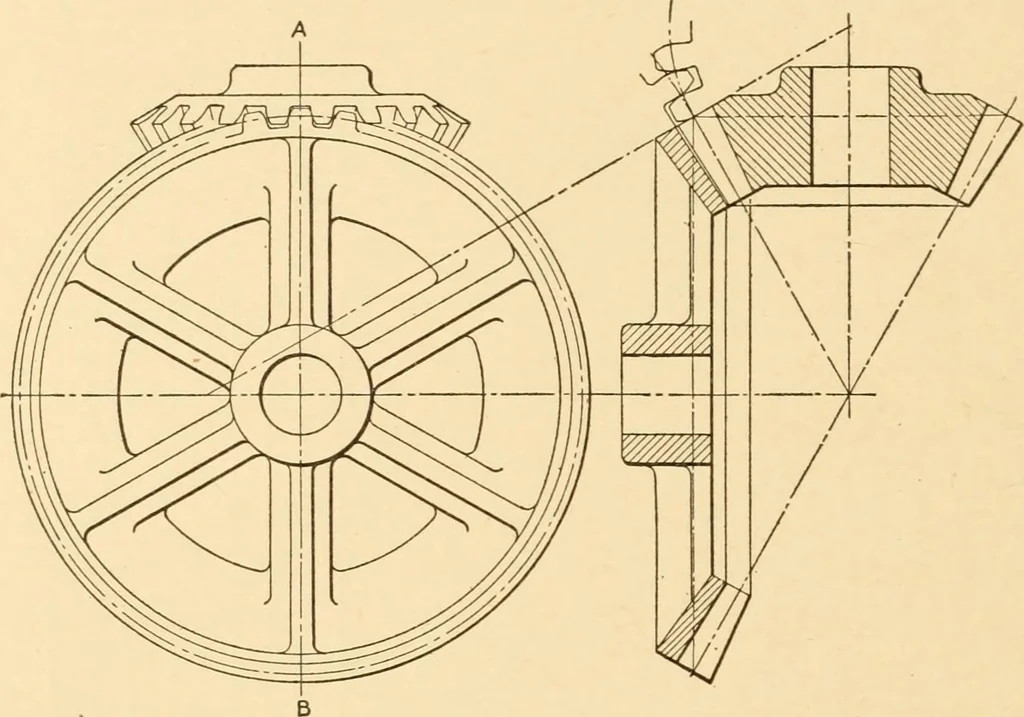

Fig. 205. Friction Cones. 118 MACHINE DRAWING motion from one shaft to another as in Fig. 205. To prevent slipping,teeth may be used and the cones become bevel gears. Two bevel gears … Fig. 206. Bevel Gears. of the same size with shafts at right angles are called mitre gears. Apair of bevel gears is shown in Fig. 206. The shafts may make any anglewith each other. The terms used and the parts of a bevel gear are given
