Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 163

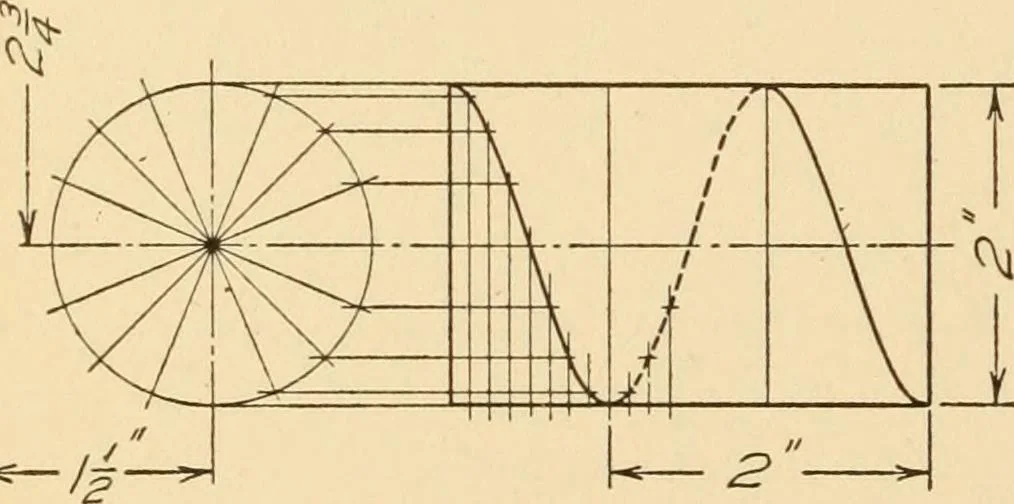

, Space I.—Draw three conventional representations of screwthreads. PROB. 34, Fig. 251, Space II.—Draw three conventional representations of threadedholes in plan and elevation as shown. PROB. 35, Fig. 251, Space III.—Draw the stud and threaded rod ends as shown. PROB. 36, Fig. 251, Space IV.—Draw… … Fighf Hand HelU
Machinery
