Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 164

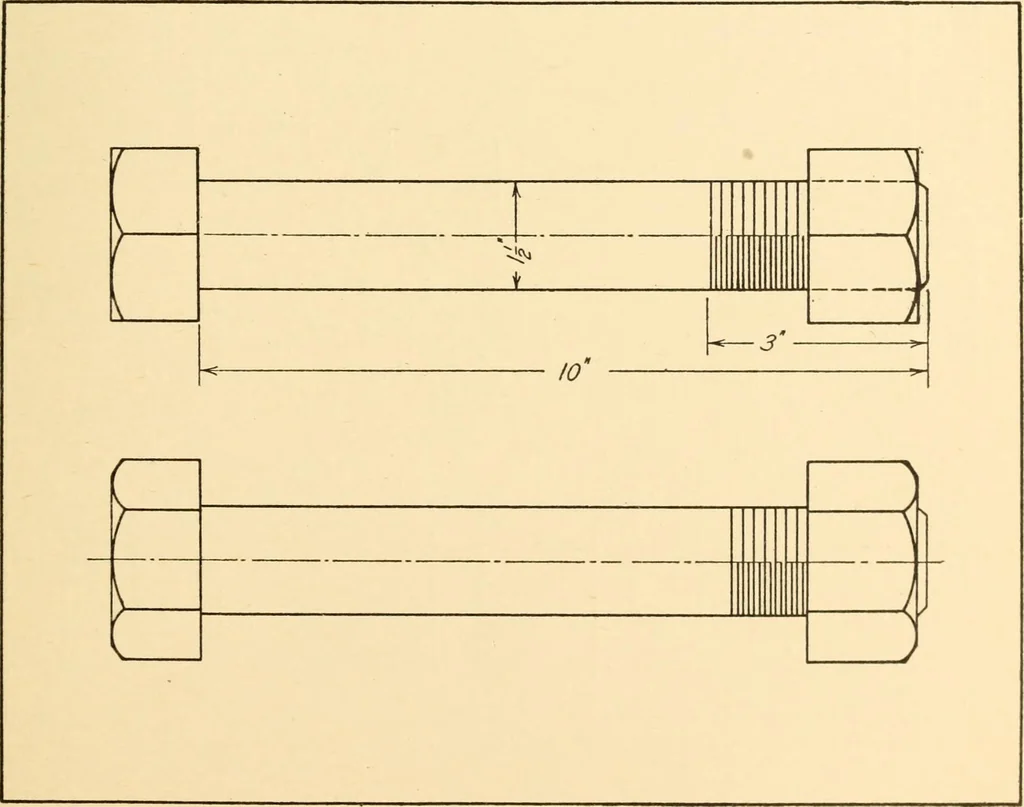

u-/^ Fig. 251. Probs. 33, 34, 35 and 36. … Fig. 252. Prob. 37, U. S. Std. Bolt, 153 154 MACHINE DRAWING PROB. 38, Fig. 253.—Make a drawing of the bolts, studs, etc., as shown in thefigure. Give specification dimensions. PROB. 39, Fig. 254, Space I.—On axis A-B draw a V4 through bolt, hex headacross corners and hex nut across flats. On axis…
Machinery
