Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 165

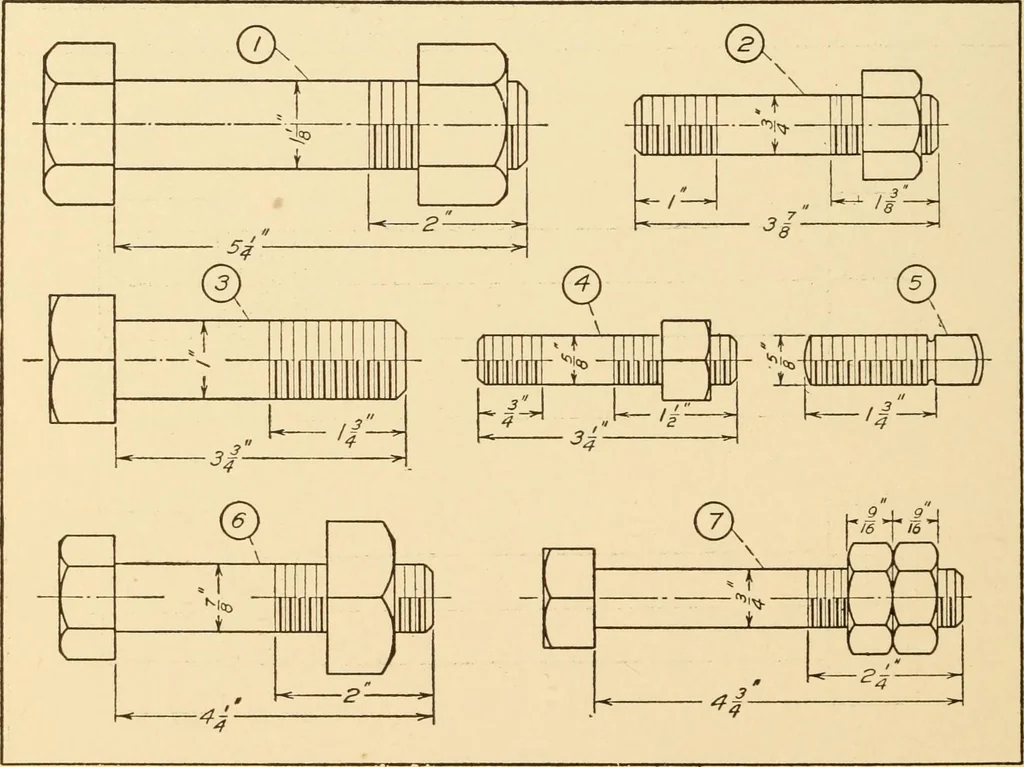

2, Fig. 254, Space IV.—Draw gland and stuffing box. On axis A-Bdraw a V2 stud and nut. Show nut across flats. Make provision for the gland toenter one half the depth of the stuffing box when nut is screwed onto stud. Showspecification dimensions. PROB. 43.—Lay out 11 x 14 working space. Draw a V/i… … Fig. 253. Prob. 38. Bolt Drawing. PROBLEMS AND STUDIES 155
Machinery
