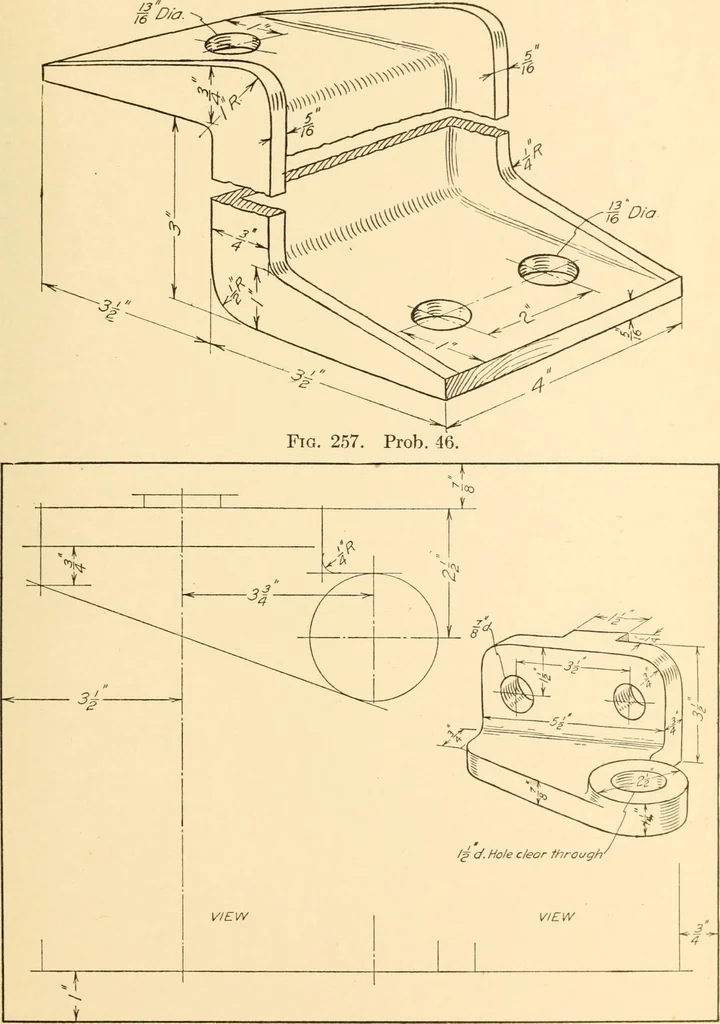

, one a section throughthe axis. PROB. 64, Fig. 270.—Make working drawing of the T-SLOT LEVER. Com.-pletely dimension. Consider true distances and treatment of views. Submit a pre-liminary freehand sketch to your instructor. PROB. 65, Fig. 271.—Draw two exterior views of LUG COLLAR.PROB. 65-A, Fig.… … Fig. 258. Prob. 47.
