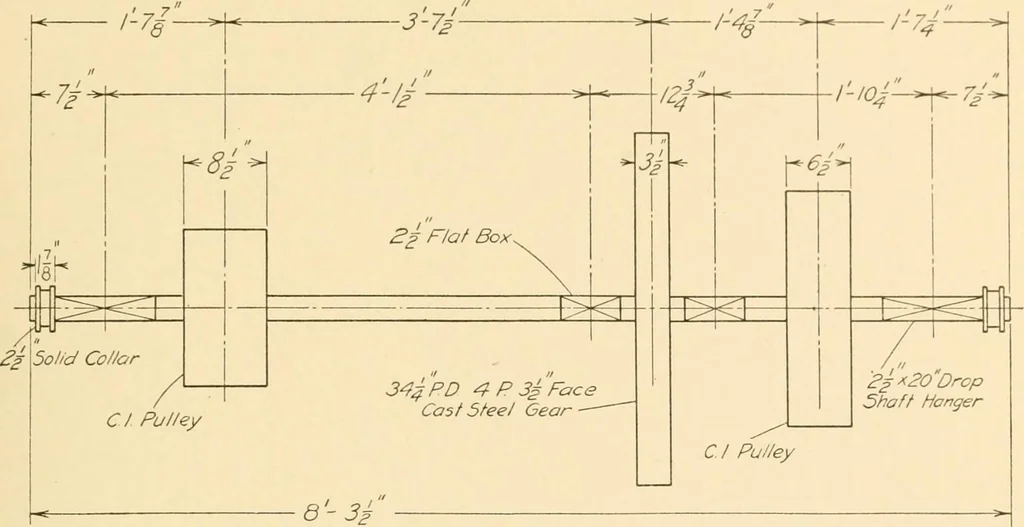

g. 288, for the shaft shown in Fig. 289. The smaller pulley is 16 diameterand the larger pulley 24 diameter. Get other dimensions from the tables given inChap. VI. PROB. 99, Fig. 184, Chap. VII.—Make a drawing for a SOLID SLEEVE COUP-LING for size specified by instructor. PROB. 100, Fig. 185, Chap.… … Fig. 2S9. Prob. 98. Shaft Drawing. JIGS AND FIXTURES 199. The following problems emphasize points to be considered in shop drafting.
