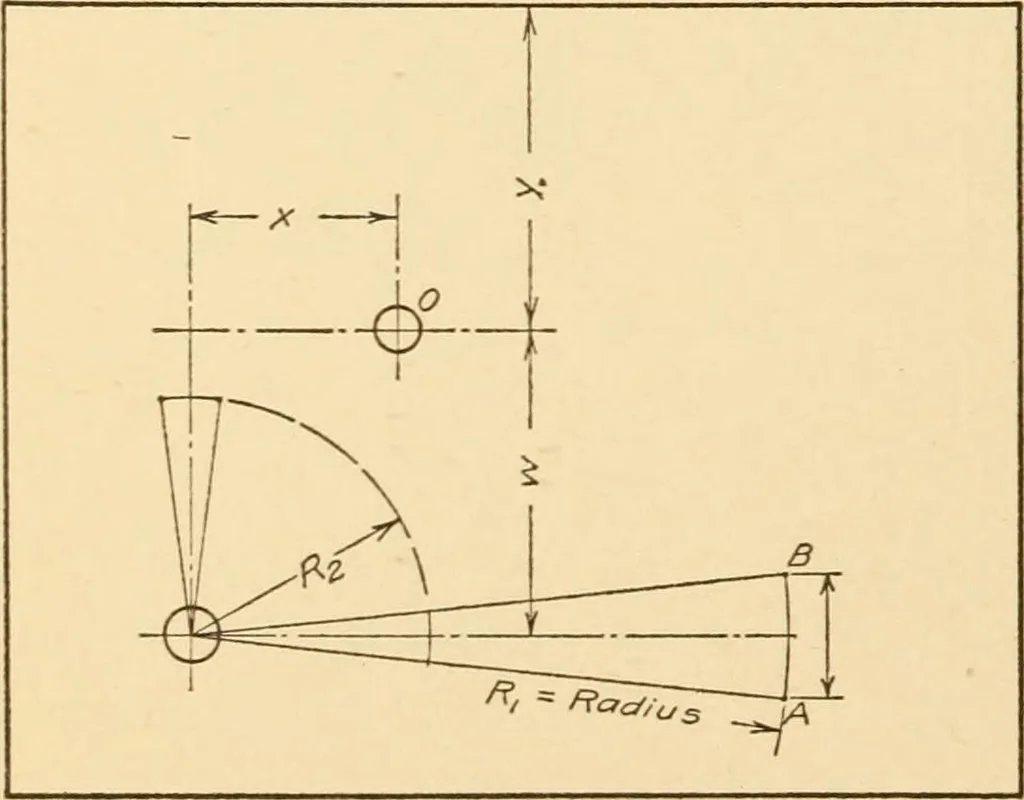

Down IV4 inches during V2 rev. with uniform motion. Shaft revolves left hand.X = 9, y = 5, AB = VU, CA = 2^U, OC = IV4. PROB. 132, Fig. 299.—Same as Prob. 131 except, X = 9, y = 5, AB = IV2, CA = 3, OC = 1. PROB. 133, Fig. 299.—PLATE CAM wdth either point or roller contact. Motionas follows: Up…
