Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 206

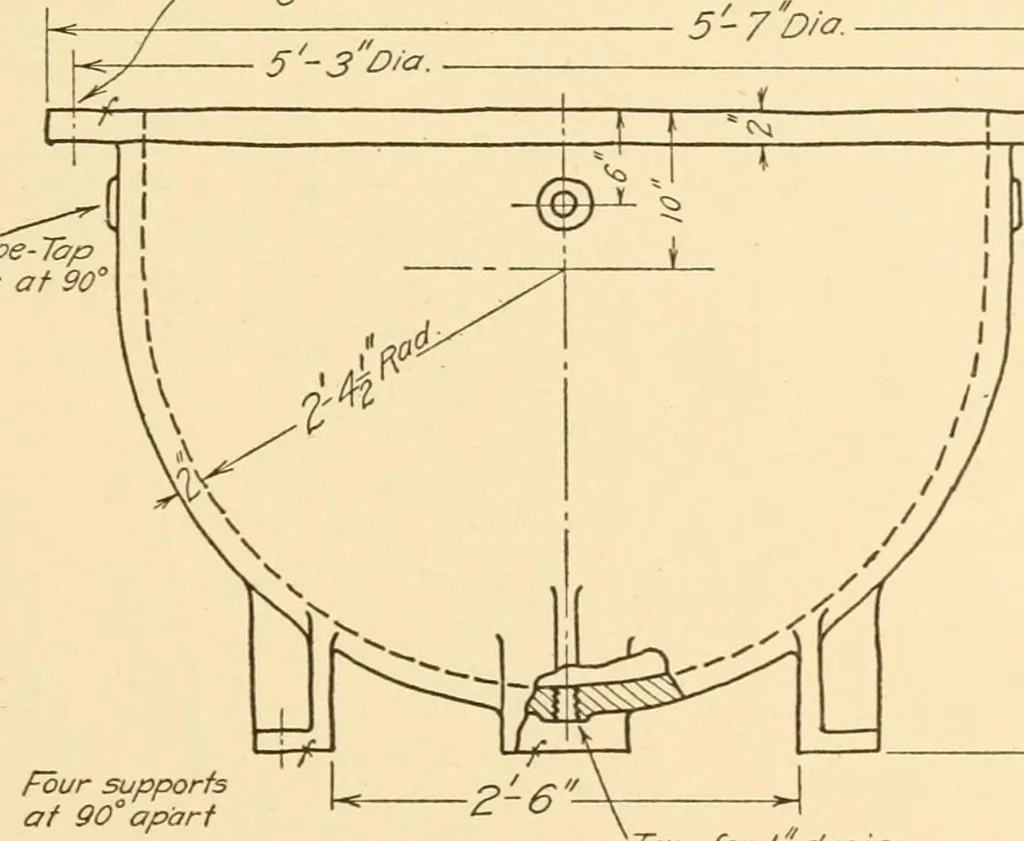

I Pipe- Topfour at 90° … Pour Supportsat 90°apart Tap for / c/ra/nSteam Jacket Fig. 324. Probs. 174 and 175. Completely dimension the drawing. The jacket is supported upon four supports, shownpictorially. The flange of the kettle rests upon the flange of the jacket and is bolted toit. Use large sheet. (Fig. 236.) ,ii…
