Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 106

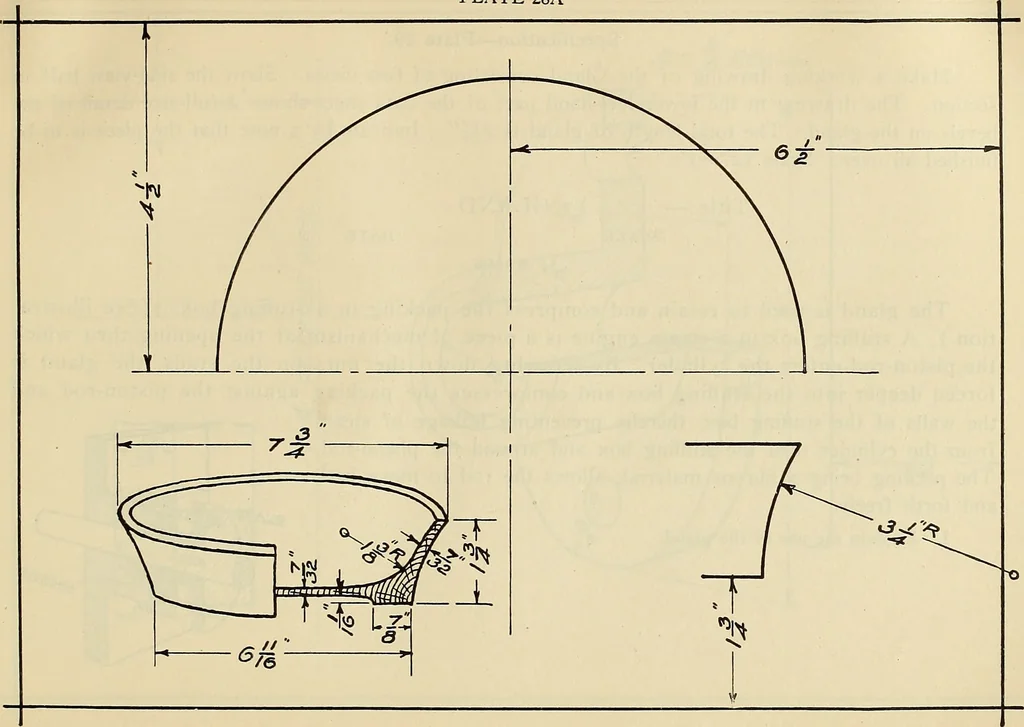

n—Plate 28A, Make a drawing of the Xut Bowl, showing the front-view half in section and the upperhalf of the top view. Scale I2=i. Title:— NUT BOWL SCALE DATE NAME When a cylindrical object is symmetrical, or the same on both sides of a center line, it iisometimes a saving of time and paper to draw… … 104 MECHANICAL DRAWING PROBLEMS Specification—Plate 29. Make a working drawing of the Gland consisting of two views. Show the side-view half insection. The drawing in the lower left-hand part of the data sheet shows a full-size detail of thebevels on the gland. The total length of gland is 2^.…
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
