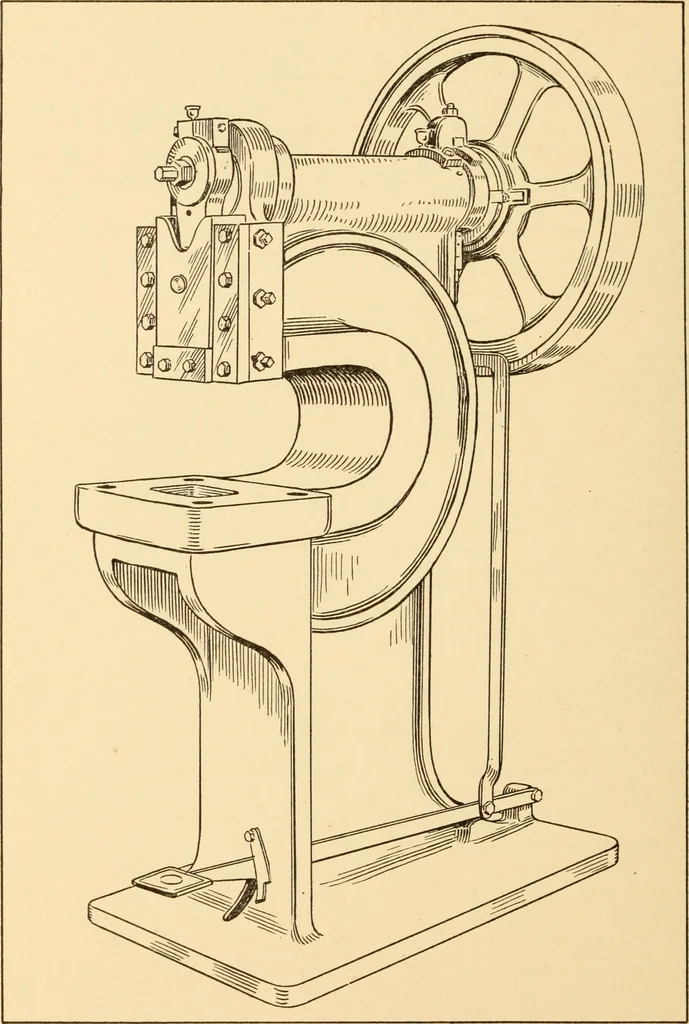

8.—Make an assembly drawing of the complete press. Show all partsin their working positions. Section such parts as are necessary to show the constructionclearly. Choose scale and plan views for instructors criticism. Work carefully tocheck details. Drawing must be accurate. Do not dimension. Study… … Fig. 330. Press. PROBLEMS AND STUDIES 203
