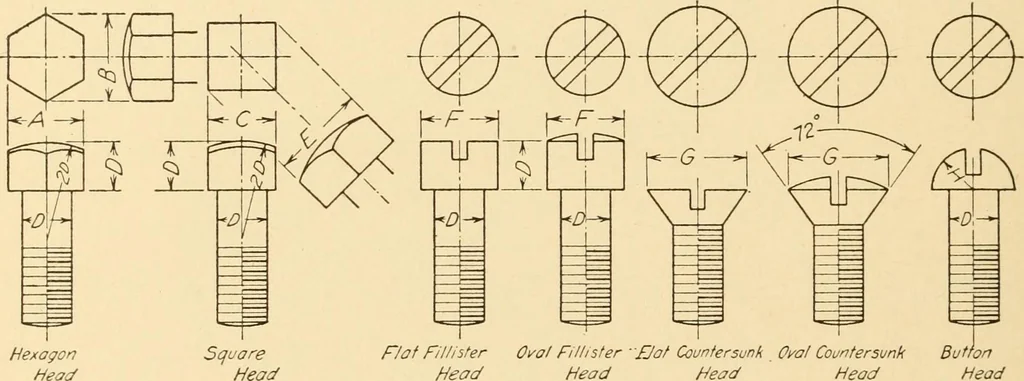

. For a bolt these are diameter, length from underside of head, and length of thread measured from end of bolt. For astud, give the diameter, total length, and length of thread measuredfrom each end. A bolt drawing is shown in Fig. 47. Dimensions of U. S. Standard bolts are given in Table 2. 44.… … F/af FiI/I iterHead Fig. 48. Cap Screws. forms of heads are shown in Fig. 48 and dimensions for drawing them aregiven in Table 3. Cap screws are designated by their diameter in incheswhich are given as fractions starting at ^li\ and by length in inches.
