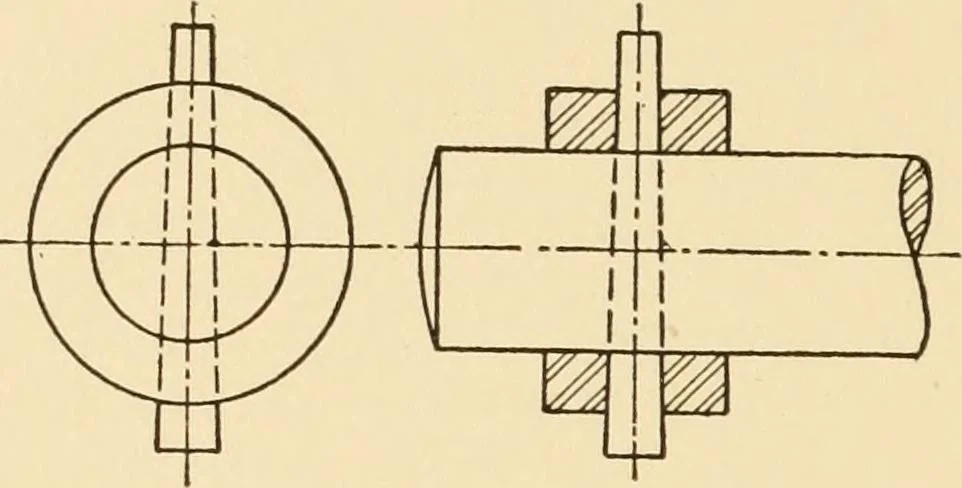

I r Fig. 106. Non-continuous Section. 92. Special Views.—When an object has one part at an angle thetwo views do not have to project if a better representation may be ob-tained by revolving or developing one of the views or part of a view.In Fig. 103 the top view shows the true angle and the front… … Fig. 107. Some studies in representation are given in Figs. 104 to 108 whichshow both exterior and sectional treatments. The line marked in Fig.108 is not an actual line but is useful for reading the drawing. Special
