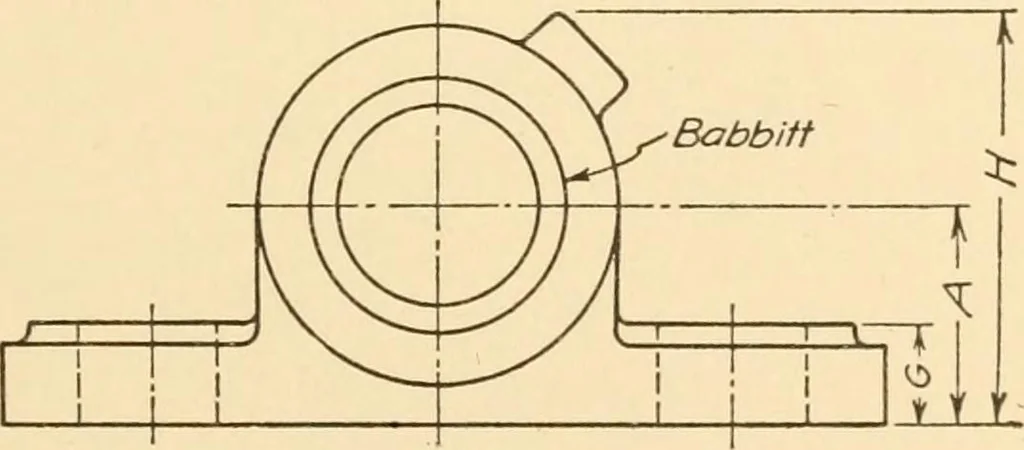

---Length = /iDI^ Fig. 165. Solid Bearing. to use. It is too weak to support a load so it has to be held in place byshells of brass or cast iron which are provided with anchorage grooves.The babbitt may be melted and poured into the shell, using the shaftto mould it to the right size. For better… … Fig. 1G6. Solid Babbitted Bearing. 88 MACHINE DRAWING the babbitt is peened into firm contact with the shell after which it isbored and scraped to size. 126. Various forms of brass and white metal boxes are suggested inFig. 163. The thickness t may be made about {d + 1.5)/12 where dequals diameter…
