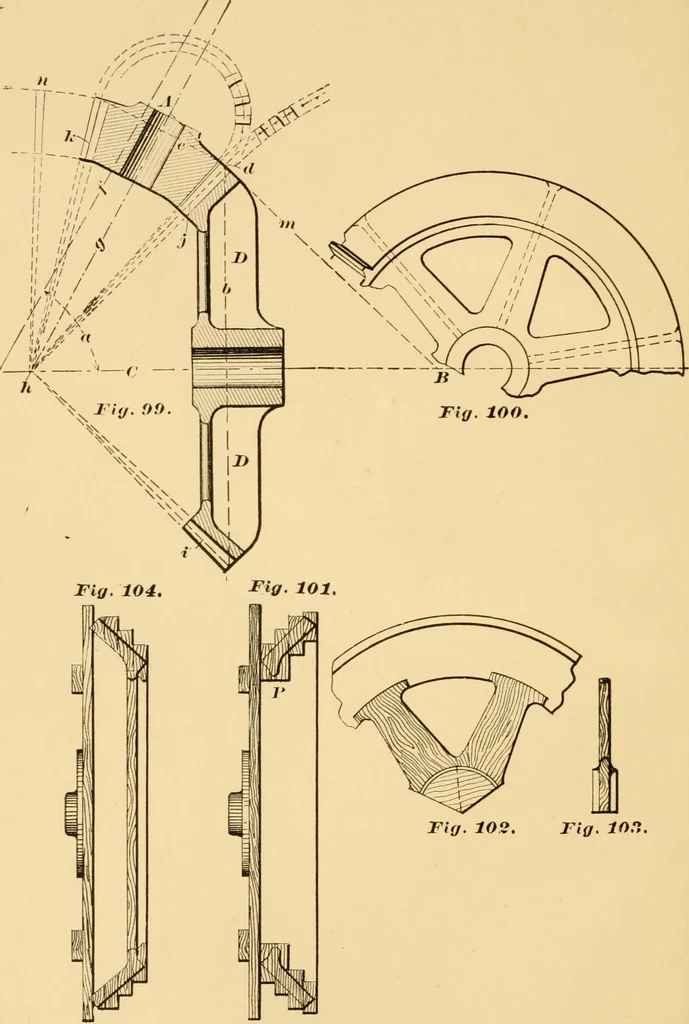

the best formof tooth cannot be made by any interchangeable system;of course, I am speaking now of the epicycloidal form oftooth. For some special machinery, where it is neces-sary to have the best form of teeth, without regard totheir being interchangeable, the Odontograph is setdifferently from… … BEVEL GEARS. PATTERN MAKING. 49 BEVEL GEARS. THE MANNER OF LAYING THEM OUT. Before saying anything about the construction of thesepatterns, some explanation should be made about theHnes that are required. Fig. 99 is a section of the gear and pinion to bemade,and gives the angle at which the two…
