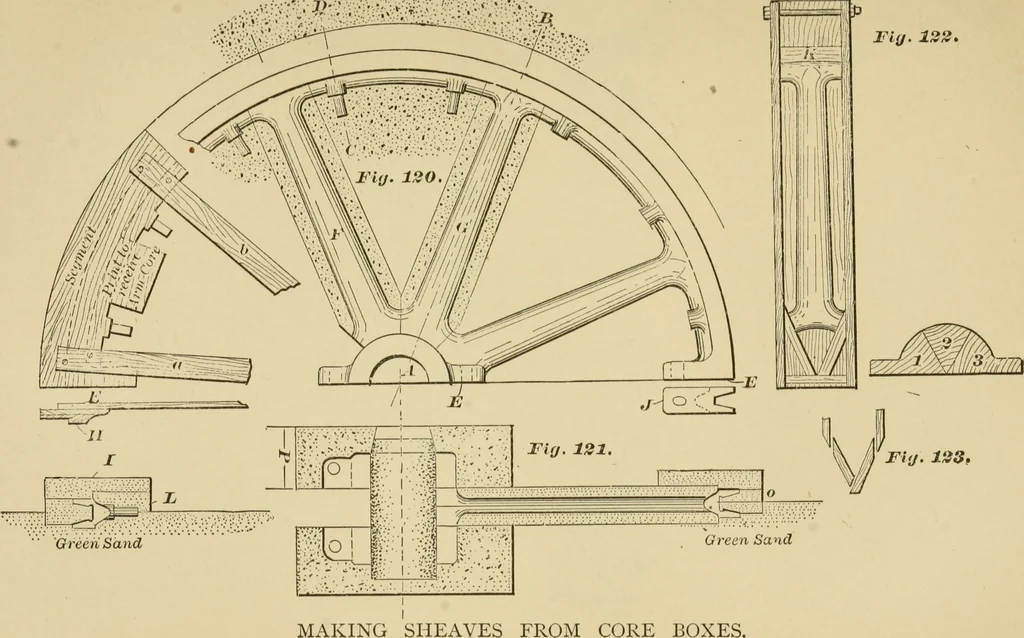

et. The lowerpart of rim is made in green sand, a segment patternbeing used to form it. This segment pattern is shownto the left in Fig. 120, H being a section of it. Twobattens, a, b, are screwed on, which run to the center,the ends being cut to fit around the spindle. The lugs at the joint, for… … d ^.. Fig. 134*
