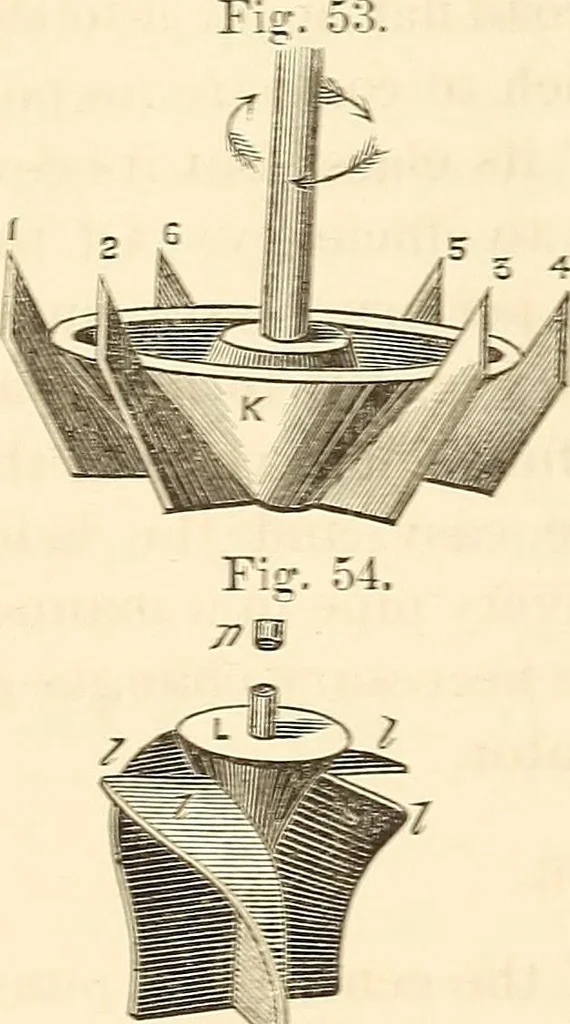

end of the step X. secured in the boss L.supporting the shaft and disc when run vertically. Motion is commu-nicated t<:• the disc by a belt upon the pulley P. The pump and pipesfirst being tilled with water, rapid motion is uiven to the disc K. whenthe centrifugal force imparted to the water… … CENTRIFUGAL PUMPS TURBINE ELEVATOR. 189 By means of the spiral passages around the boss L, the water fromthe suction-pipe is turned gradually from a direct forward course, anddelivered to the propelling wings in the line of their action$ thence,through the spiral passages g and E it is again, by an…
