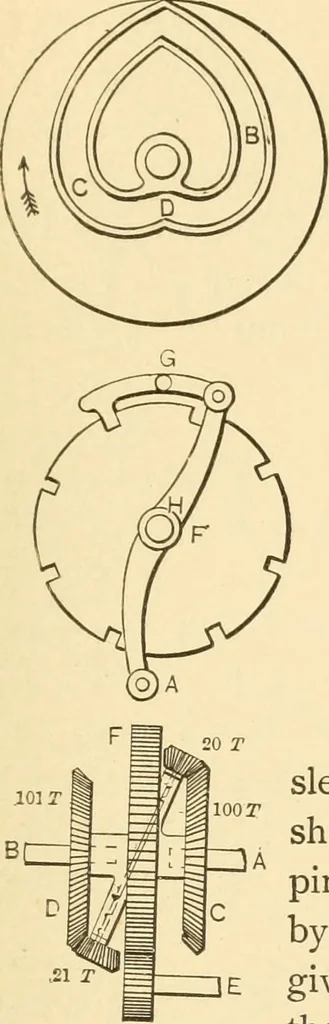

the spur wheel F, by the pinion E, variesthe speed of shaft B—A being the driving shaft. 970. CHANGE GEAR MOTION, with spurgearing only. The spur wheel C moves freely onthe disconnected shafts A and B. A short shaftand two fast pinions have a free motion near theperiphery of the spur wheel C. The…
