Machinists' and draftsmen's handbook, containing tables, rules and formulas, with numerous examples explaining the principles of mathematics and mechanics as applied to the mechanical trades; intended as a reference book for all interested in mechanical work (1910)
Lobben, Peder, 1858- · New York, D. Van Nostrand company · leaf 391

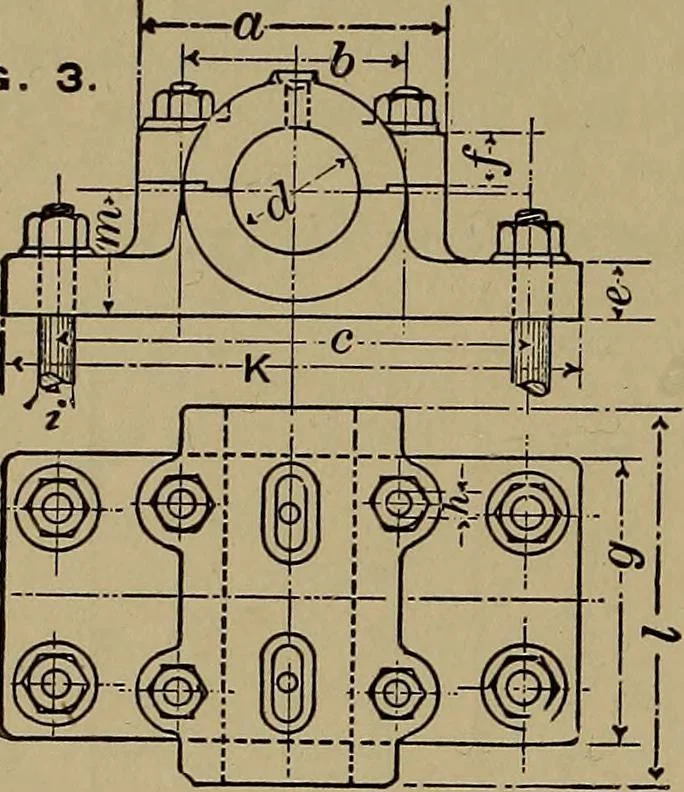

id-\-l% inches.b = l%d+ y8 inch.c — 2l/2d+2 inches.^ — 3^+3 inches.e = %d 4~ X inch./= % d+ % inch. g=%l _/=*> xVdwi= d h — yi d+ % inch.i = % d + ys inch. Figure 4 shows a babbitted box or pedestal suitable forcomparatively heavy-loaded shafts, from three to eight inchesin diameter, such as…
Mechanical engineering
