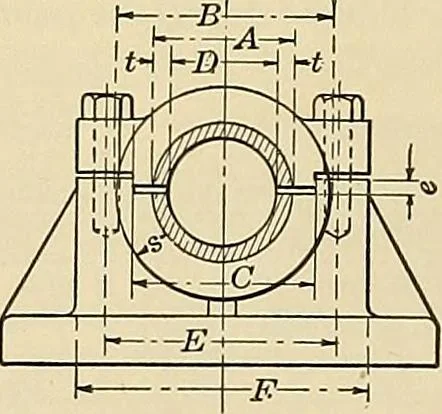

elow 840 deg.Fahr. more gas is turned on. The shape of the lips of the ladle used for pouring bearings is veryimportant. The lips should not be sharp but rounded, so that thestream will not strike either mandrel or shell, otherwise a burntstreak will result. A broad stream or an intermittent stream… … X)=Diameter of Shaft .B=1.8Z)+KC=1.45£>+/4E=1.SD+H Fig. 1,3.—A plain bearing with formulas for dimensions. t = .05£)+J<d = .25Ds = .35D „e = .08Z)f H
