Notes on practical mechanical drawing, written for the use of the students in general engineering drawing in the University of Illinois (1907)
Wilson, Victor Tyson, 1864- [from old catalog] · State College, Pa., The author · leaf 77

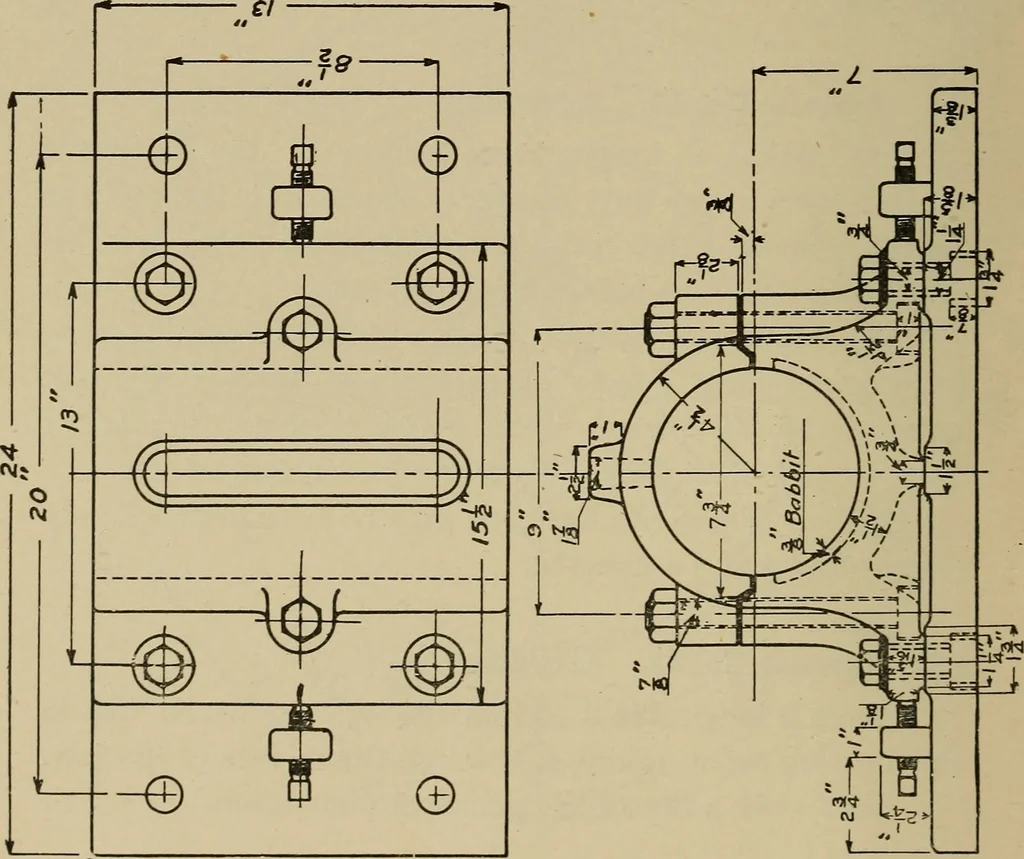

for a heavy duty engine as shown, and through the boltholes of the sole plate. Show a few principal dimensionsonly, overall, diameters, distances between centers, etc. Note : These two exercises may be done in pencil onlyor inked as may be directed. 25. Exercise No. 15. Sectioning. Make a… … Curves and Straight Lines Combined, and Sections 69 Note: The same general type of vise is shown in theScranton Correspondence series on mechanical drawing. This may be done in pencil only, or inked as directed. 26. Exercise No. 16. Sectioning. Make a longitudinal section through the center of…
