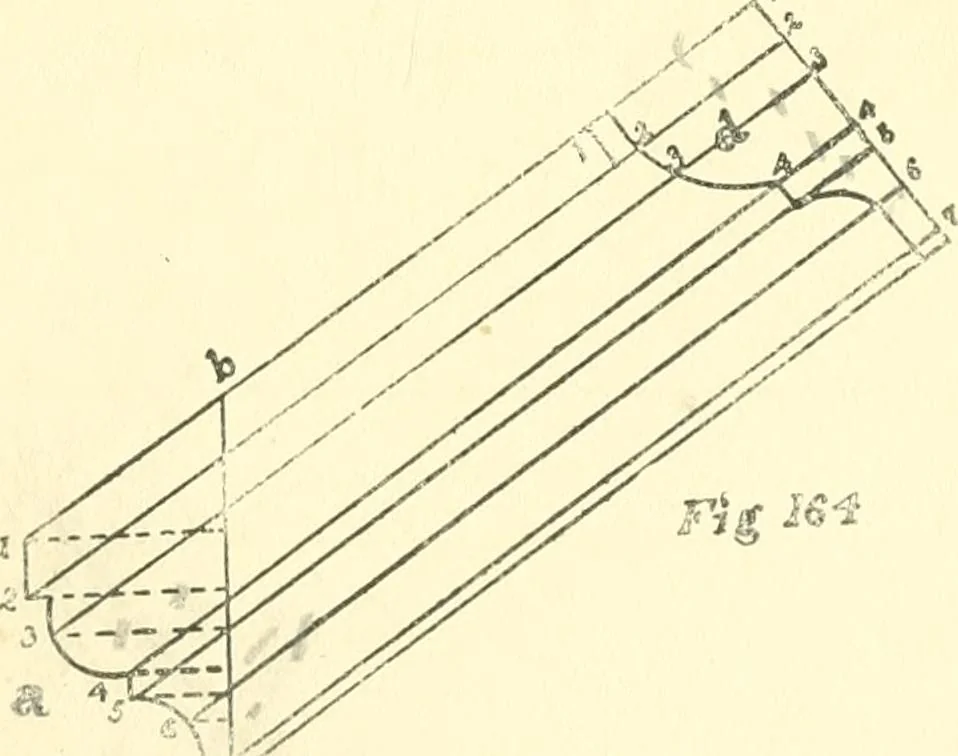

nnect e c and e wdll be the bevel for the face of the work. Now connect d and f, and the bevel at/ is the bevel for the edge of the work. The above rule can be used for a hopper of any number of sides by taking for the radius a b one-half the width of one side of the hopper at its widest part.… … 114 GUIDE AND ASSISTANT joining all the breaks in the moulding, as i, 2, 3, 4, etc;then draw lines from these points on the moulding withthe rake of the roof, as i i, 2 2, 3 3, etc., and draw a lineat right angles to these, as i 7 at d; make line \ \ 2X d thesame length as i i at ^ and 2 2 at ^^…
