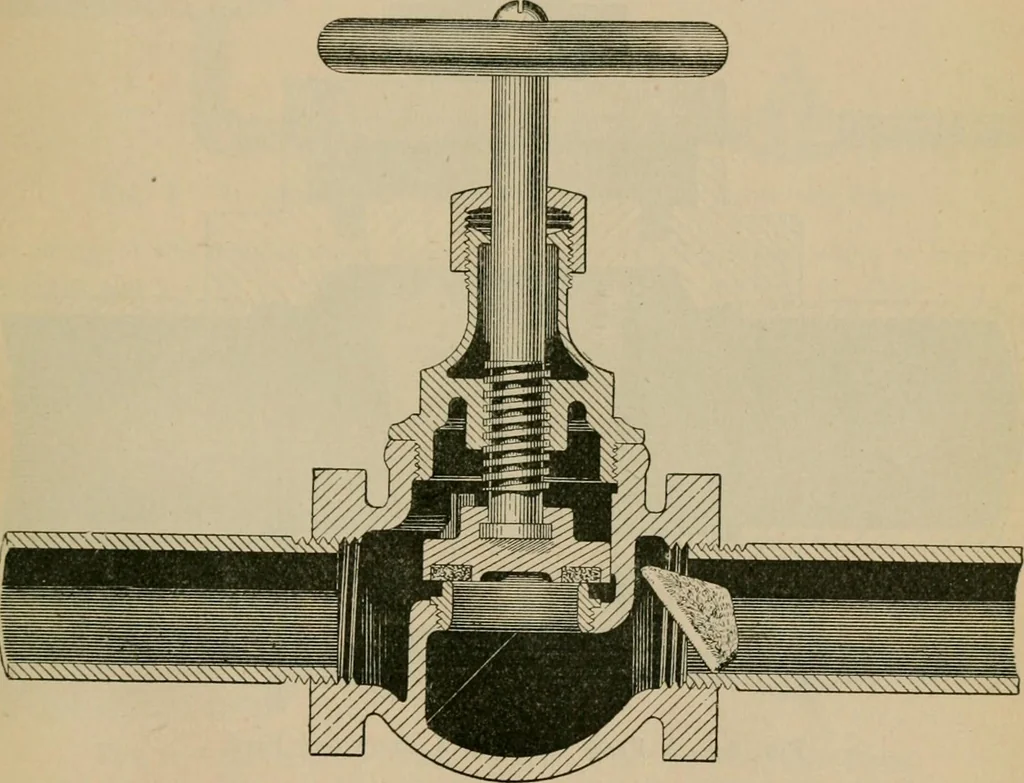

SHED BY THE HARTFORD STEAM BOILER INSPECTION AND INSURANCE COMPANY. __ — Nknn Sekies Vol. XV. BARTFORD, CONN., OCTOBER, L894. No. 10. Concerning Blow-off Pipes. In tlu- September issue of The Locomotive, in speaking of the deposit of sedi-ment and the formation of scale in pipes, we referred to the… … Fig. 1.—A Globe Valve applied to a Blow-off Pipe. thoroughly appreciated, we herewith present two cuts (Figs. 1 and 2) which will suf-fice, it is hoped, to make the matter clear. Fig. 1 represents a globe valve as applied toa blow-off pipe, and we have endeavored to illustrate the fact that such a…
