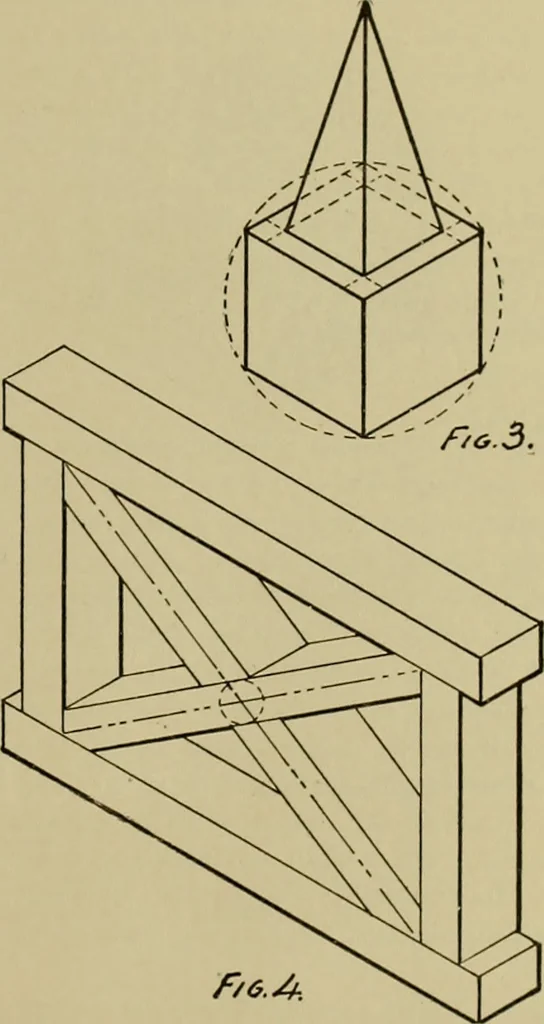

Fjc.Z. … ii6 A MANUAL OF MECHANICAL DRAWING. diagonal intersects the vertical, draw a line across theface of the vertical, and where it intersects the othereds^e of the vertical will be the point which measuresthe width of the diagonal. From this point draw a lineparallel with the face lines of the diagonal…
