Johnston, Philip Devereux, 1855- · New York, D. Williams Company · leaf 152

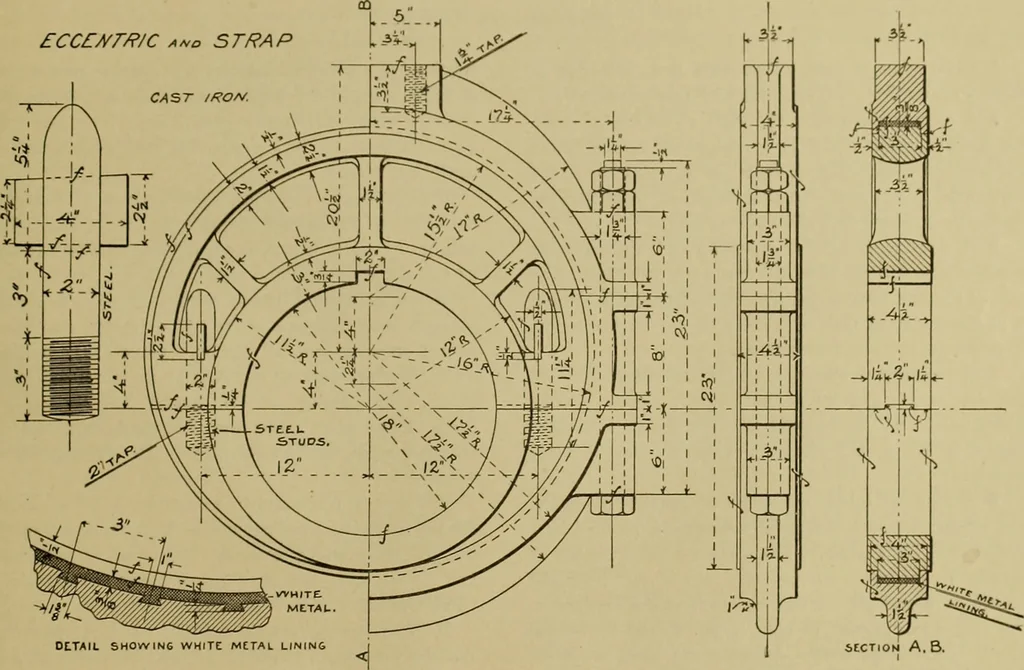

and 4 from the centre of the bore and on the vertical centreline lay off the centre from Vyfhich the outside and in-side of rim are drawn to the radii given. Completethe details of the eccentric, both front elevation andsection. The strap is in four pieces, the top and bottomstraps and the two… … OE.TAIL SHOWING WHITE METAL LINING 144 A MANUAL OF MECHANICAL DRAWING. Exercises for Review. 1 Draw plan of cube 2 on each face, standing atangle 30° and 60. Make front and side elevations. 2 A rectangular prism i^ high, i^ wide, 3 long.An end elevation would show the prism resting uponone long…
Mechanical drawing
